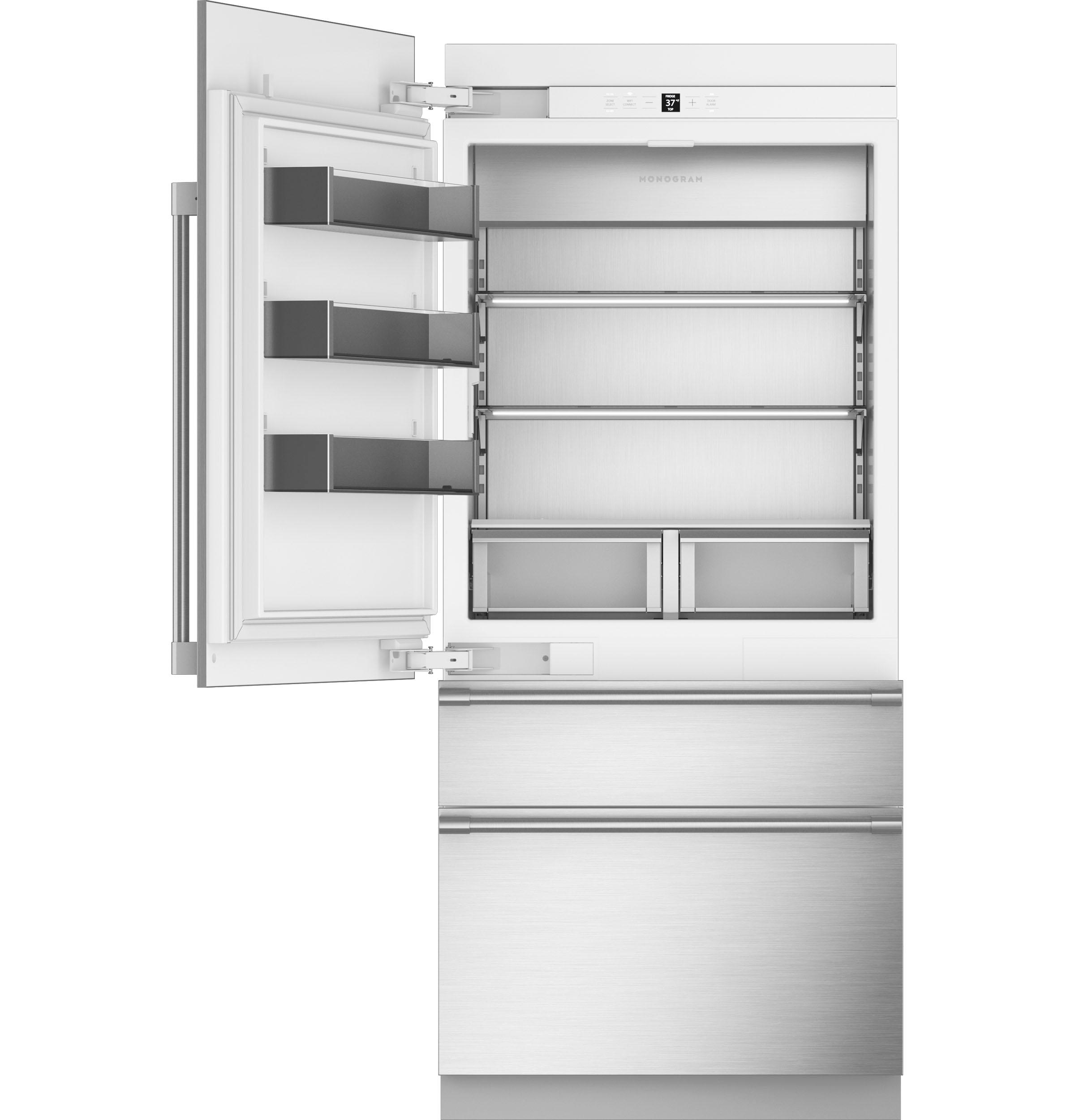

Monogram 36" Panel-Ready Premium Integrated Bottom-Left Hinge
SKU: ZIC363IPVLH
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
35.75" W
×
24.75" D
×
83.5" H
| Width (side to side) | 35.75 |
| Depth (front to back) | 24.75 |
| Height (bottom to top) | 83.5 |
| Refrigerator Capacity Ranges | 14-22 cu.ft. |
| Installation Depth | Standard Depth |
Disclaimer
Description
Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry
6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app
2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness
Glass Front Refrigerator Door Bins
The clear design makes it easy to see and access quick-grab items from refrigerator bins
Refrigerator with Ramp-Up LED Interior Shelves
Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents
Refrigerator Air Filtration Odor Reducing System
The refrigerator deodorizer air filtration system helps keep your refrigerator fresh by scrubbing the air of food odors and gases
Refrigerator with Internal Water Dispenser
The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered
Factory Installed Ice Maker
Create all the ice you want, anytime you like, with this refrigerator with ice maker
Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS are sold separately.
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry
6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items
WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app
2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness
Glass Front Refrigerator Door Bins
The clear design makes it easy to see and access quick-grab items from refrigerator bins
Refrigerator with Ramp-Up LED Interior Shelves
Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents
Refrigerator Air Filtration Odor Reducing System
The refrigerator deodorizer air filtration system helps keep your refrigerator fresh by scrubbing the air of food odors and gases
Refrigerator with Internal Water Dispenser
The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered
Factory Installed Ice Maker
Create all the ice you want, anytime you like, with this refrigerator with ice maker
Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS are sold separately.
- Refrigerator with Ramp-Up LED Interior Shelves
- Refrigerator with Internal Water Dispenser
- Factory Installed Ice Maker
- Factory Installed Ice Maker
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Refrigerator Air Filtration Odor Reducing System
- Glass Front Refrigerator Door Bins
- Bottom Freezer with Flush Inset Installation
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Refrigerator Air Filtration Odor Reducing System
Rebates
view available rebates
Monogram 36" Panel-Ready Premium Integrated Bottom-Left Hinge
Refrigerators Collection
Specifications
Specifications
Dimensions
Height (bottom to top)
83.5" H
Height (bottom to top)
- 83.5" H
Width (side to side)
35.75" W
Width (side to side)
- 35.75" W
Depth (front to back)
24.75" D
Depth (front to back)
- 24.75" D
Installation Depth
Standard Depth
Installation Depth
- Standard Depth
Refrigerator Capacity Ranges
14-22 cu.ft.
Refrigerator Capacity Ranges
- 14-22 cu.ft.
Storage
Storage Description
Two half-width adjustable humidity drawers with full-extension soft-close slides, two full-width spill-resistant fresh food cabinet shelves, three adjustable fresh food door bins, one freezer drawer with full extension soft-close slides, and a convertible middle drawer with six temperature settings.
Storage Description
- Two half-width adjustable humidity drawers with full-extension soft-close slides, two full-width spill-resistant fresh food cabinet shelves, three adjustable fresh food door bins, one freezer drawer with full extension soft-close slides, and a convertible middle drawer with six temperature settings.
Number of Doors
1
Number of Doors
- 1
Number of Shelves
2
Number of Shelves
- 2
Number of Drawers
4
Number of Drawers
- 4
Number of Door Bins
3
Number of Door Bins
- 3
Features & Function
Appliance Storage Features
Adjustable Door Bins, Crisper Drawer
Appliance Storage Features
- Adjustable Door Bins
- Crisper Drawer
Defrost Type
Auto/Cycle
Defrost Type
- Auto/Cycle
Water Dispenser Location
Interior
Water Dispenser Location
- Interior
Built-In Ice Maker Features
In Freezer Ice Storage
Built-In Ice Maker Features
- In Freezer Ice Storage
Refrigerator Features
Door Alarm, Interior Lighting, Icemaker, Water Filter, Wi-Fi Enabled, Sabbath Mode, Water Dispenser, Temperature Control
Refrigerator Features
- Door Alarm
- Interior Lighting
- Icemaker
- Water Filter
- Wi-Fi Enabled
- Sabbath Mode
- Water Dispenser
- Temperature Control
Style Elements
Color Name
Custom Panel Ready
Color Name
- Custom Panel Ready
Construction & Materials
Shelf Composition
Glass
Shelf Composition
- Glass
Shipping
Item Weight
548lbs
Item Weight
- 548lbs
Product
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wifi Enabled
Yes
Wifi Enabled
- Yes
Refrigerator Type
Bottom Freezer
Refrigerator Type
- Bottom Freezer
Refrigerator Total Capacity
20.2
Refrigerator Total Capacity
- 20.2
Install Type
Built-In
Install Type
- Built-In
Refrigerator Capacity Cubic Feet
13.71
Refrigerator Capacity Cubic Feet
- 13.71
ADA Compliant
No
ADA Compliant
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
3.45
Freezer Cubic Feet Capacity
- 3.45
CAPACITY
Convertible Drawer Capacity
2.91 cu ft
Convertible Drawer Capacity
- 2.91 cu ft
Fresh Food Capacity
13.71 cu ft
Fresh Food Capacity
- 13.71 cu ft
Total Capacity (cubic feet)
20.1 cu ft
Total Capacity (cubic feet)
- 20.1 cu ft
Freezer Capacity
3.45 cu ft
Freezer Capacity
- 3.45 cu ft
APPEARANCE
Panel Capability
SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH
Panel Capability
- SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH
Adjustable Rollers
2
Adjustable Rollers
- 2
Door Style
Solid Door
Door Style
- Solid Door
Coil-Free Back
Yes
Coil-Free Back
- Yes
Door Swing
Hinges on Left
Door Swing
- Hinges on Left
Handle Purchased Separately
Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS)
Handle Purchased Separately
- Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS)
Color Appearance
Custom Panel and Handle Required
Color Appearance
- Custom Panel and Handle Required
Door Stops
90 Degree and 115 Degree
Door Stops
- 90 Degree and 115 Degree
Design Style
Custom Panel & Handles
Design Style
- Custom Panel & Handles
Installation
Fully Integrated Installation
Installation
- Fully Integrated Installation
Hidden Door Hinge(s)
Yes
Hidden Door Hinge(s)
- Yes
WARRANTY
Labor Warranty
Limited 2-year entire appliance
Limited 5-year sealed refrigerating system
Labor Warranty
- Limited 2-year entire appliance Limited 5-year sealed refrigerating system
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
Limited 12-year sealed refrigerating system parts
Limited 2-year entire appliance
Parts Warranty
- Limited 12-year sealed refrigerating system parts Limited 2-year entire appliance
POWER / RATINGS
Volts/Hertz/Amps
115V; 60Hz; 20A
Volts/Hertz/Amps
- 115V; 60Hz; 20A
ECONOMICAL / QUIET
Quiet Package
36 dBA
Quiet Package
- 36 dBA
ACCESSORIES
Side by Side Install Toe-Kick Kit
54" ZKK54P
60" ZKK60P
66" ZKK66R
72" ZKKW2R
Side by Side Install Toe-Kick Kit
- 54" ZKK54P 60" ZKK60P 66" ZKK66R 72" ZKKW2R
Handle Stud Kit
ZKPN
Handle Stud Kit
- ZKPN
Trim Kit
36" Trim Kit for 24" deep cabinets ZKW36V
72" Trim Kit for 24" deep cabinets ZKW72V
Trim Kit
- 36" Trim Kit for 24" deep cabinets ZKW36V 72" Trim Kit for 24" deep cabinets ZKW72V
SxS Install Heater/Unification Kit
ZKMV
SxS Install Heater/Unification Kit
- ZKMV
WEIGHTS & DIMENSIONS
Overall Width
35.75 in
Overall Width
- 35.75 in
Approximate Shipping Weight
621 lb
Approximate Shipping Weight
- 621 lb
Overall Depth
24.75 in
Overall Depth
- 24.75 in
Height to Top of Hinge
83.5 in
Height to Top of Hinge
- 83.5 in
Net Weight
548 lb
Net Weight
- 548 lb
Overall Height
83.5 in
Overall Height
- 83.5 in
FEATURES
Temperature Management Features
Dual Evaporator
Independent Temperature Controls
Multi-Shelf Air Management Tower
Temperature Management Features
- Dual Evaporator Independent Temperature Controls Multi-Shelf Air Management Tower
Fresh Food Features
Display Temp Setpoint
Door Alarm
Filter-Change Indicator
Interior Lighting - Ramp Up LED 4
Sabbath Mode Status
Fresh Food Features
- Display Temp Setpoint Door Alarm Filter-Change Indicator Interior Lighting - Ramp Up LED 4 Sabbath Mode Status
Control Type
Integrated
Upfront Capacitance Touch Controls
Control Type
- Integrated Upfront Capacitance Touch Controls
Exterior Style
Built-In
Standard Depth
Exterior Style
- Built-In Standard Depth
Configuration
Full Door and Double Drawer
Configuration
- Full Door and Double Drawer
Door Alarm
Yes
Door Alarm
- Yes
Refrigerant Type
R600a
Refrigerant Type
- R600a
Custom Panel Ready
Integrated Panels
Custom Panel Ready
- Integrated Panels
Icemaker
Factory-Installed
Icemaker
- Factory-Installed
WiFi Connect
Built-In
WiFi Connect
- Built-In
Fresh Food Cabinet Shelves
2 Full-Width
Spill-Resistant
Fresh Food Cabinet Shelves
- 2 Full-Width Spill-Resistant
Interior Lighting
LED
Interior Lighting
- LED
Filter Change Indicator
Display water filter status @ 90% usage
Filter Change Indicator
- Display water filter status @ 90% usage
Sabbath Mode
Yes
Sabbath Mode
- Yes

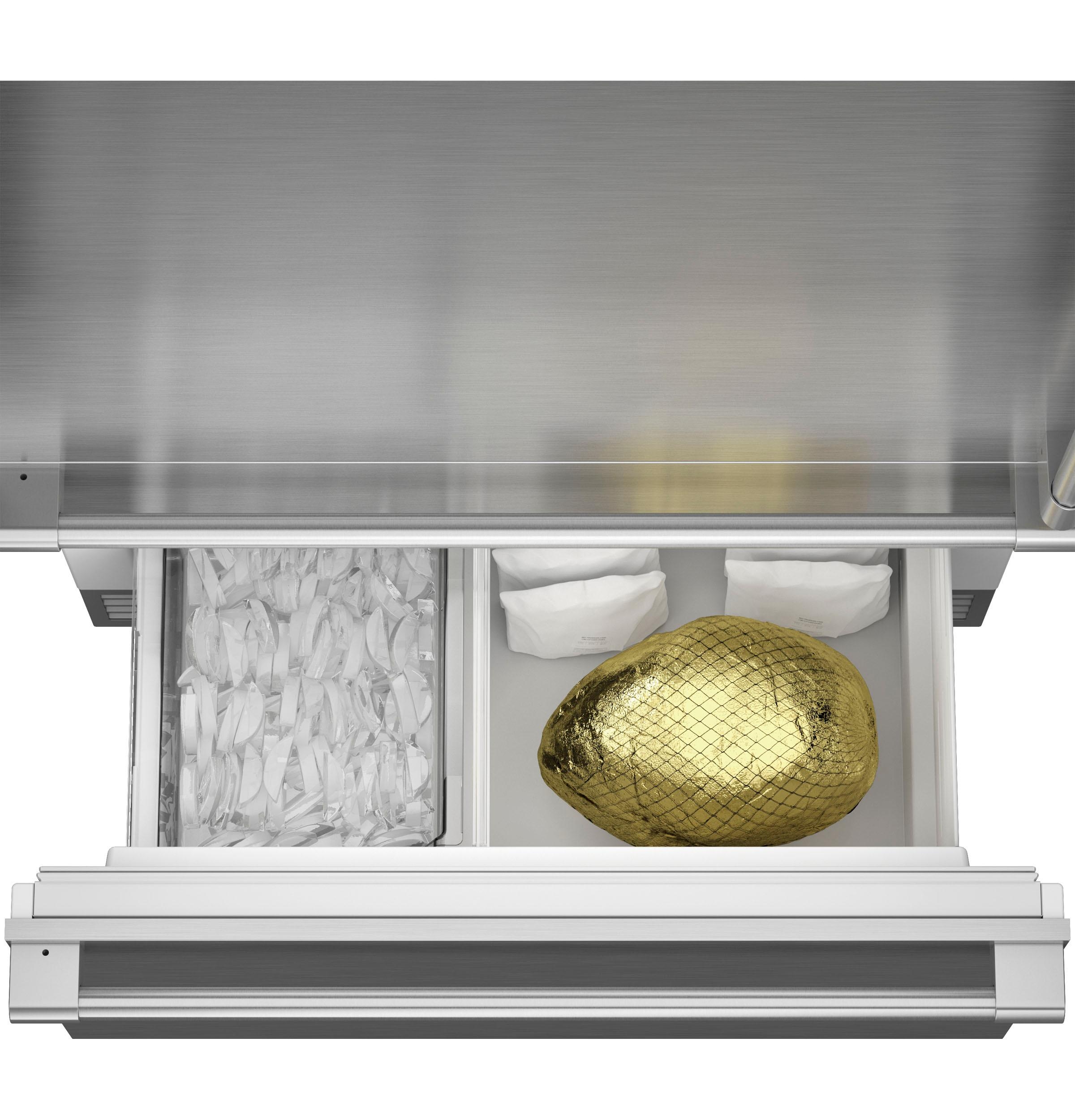

Bottom Drawer
Metal Interior with Mat
One Adjustable Divider
Yes, Freezer w/IM
Bottom Drawer
- Metal Interior with Mat One Adjustable Divider Yes, Freezer w/IM
Dispenser
Internal Water
Dispenser
- Internal Water
Fresh Food Cabinet Shelf Features
Lighted Glass Shelves
Fresh Food Cabinet Shelf Features
- Lighted Glass Shelves
Defrost Type
Automatic Defrost
Defrost Type
- Automatic Defrost
Fresh Food Cabinet Drawers
2 Half-Width Adjustable Humidity Drawers
Full-Extension Soft-Close Slides
Fresh Food Cabinet Drawers
- 2 Half-Width Adjustable Humidity Drawers Full-Extension Soft-Close Slides
Water Filtration
GE Water Filtration (XWFE Filter)
Water Filtration
- GE Water Filtration (XWFE Filter)
Fresh Food Door Features
3 Adjustable Bins
Full-Width
Fresh Food Door Features
- 3 Adjustable Bins Full-Width
Leveling System
4 Point (2 adjustable back rollers, 2 adjustable front legs)
Leveling System
- 4 Point (2 adjustable back rollers, 2 adjustable front legs)
Fresh Food Door Bins
3 Full-Width
Fresh Food Door Bins
- 3 Full-Width
Product Type
Bottom Freezer Refrigerator
Built-In Refrigerator
Product Type
- Bottom Freezer Refrigerator Built-In Refrigerator
Middle Drawer
6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce
Yes, Convertible; Metal Interior with Mat
Middle Drawer
- 6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce Yes, Convertible; Metal Interior with Mat
OU Certified
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
OU Certified
- OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Freezer Features
Freezer Drawer with Full Extension Slides
Soft-Close
Freezer Features
- Freezer Drawer with Full Extension Slides Soft-Close
Features
Refrigerator with Ramp-Up LED Interior Shelves, Refrigerator with Internal Water Dispenser, Factory Installed Ice Maker, Factory Installed Ice Maker, Statement and Minimalist Collection Refrigerator Handles (sold separately), Refrigerator Air Filtration Odor Reducing System, Glass Front Refrigerator Door Bins, Bottom Freezer with Flush Inset Installation, Statement and Minimalist Collection Refrigerator Handles (sold separately), Refrigerator Air Filtration Odor Reducing System
- Refrigerator with Ramp-Up LED Interior Shelves
- Refrigerator with Internal Water Dispenser
- Factory Installed Ice Maker
- Factory Installed Ice Maker
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Refrigerator Air Filtration Odor Reducing System
- Glass Front Refrigerator Door Bins
- Bottom Freezer with Flush Inset Installation
- Statement and Minimalist Collection Refrigerator Handles (sold separately)
- Refrigerator Air Filtration Odor Reducing System
Item & Dimensions
Manufacturer
Monogram
Manufacturer
- Monogram
The Refrigerators Monogram 36" Panel-Ready Premium Integrated Bottom-Left Hinge, made by Monogram,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Refrigerators collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Similar search terms: Refrigerator, Refrigerator with Bottom Freezer, Built-In Refrigerator, Side by Side Refrigerators, Built In Side x Side, Compact Refrigerator, Fridge, Refrigerator without a Freezer, Under the Counter Refrigerator, Fridge, Refridgerators, Appliances, Kitchen Appliances, Icebox, Iceboxes, Residential Refrigerators, Cold Storage
Reference #: ZIC363IPVLH
Your cart looks happy!
Monogram
Refrigerators
Bottom Freezer Built In Refrigerator
$0
You Might Also Need
