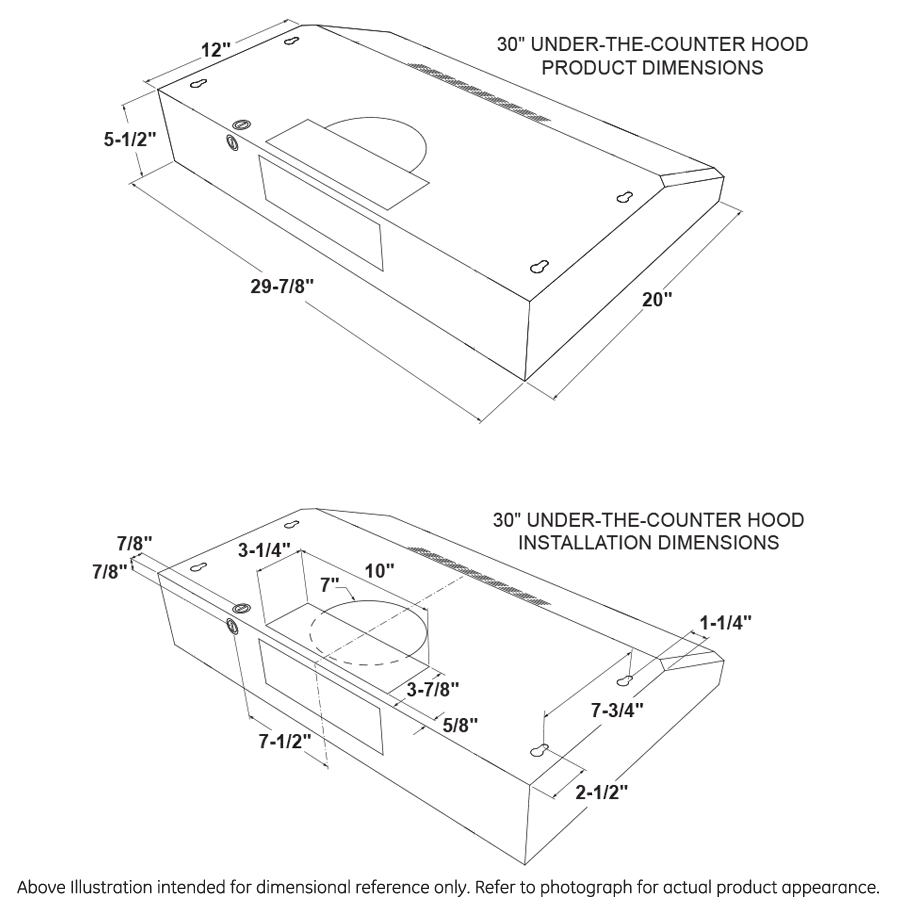

lessDimensions:
29.875" W
×
20" D
×
5.5" H
| Width (side to side) | 29.875 |
| Depth (front to back) | 20 |
| Height (bottom to top) | 5.5 |
Disclaimer
Description
Easy installation
10 minutes or less by one person
Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture

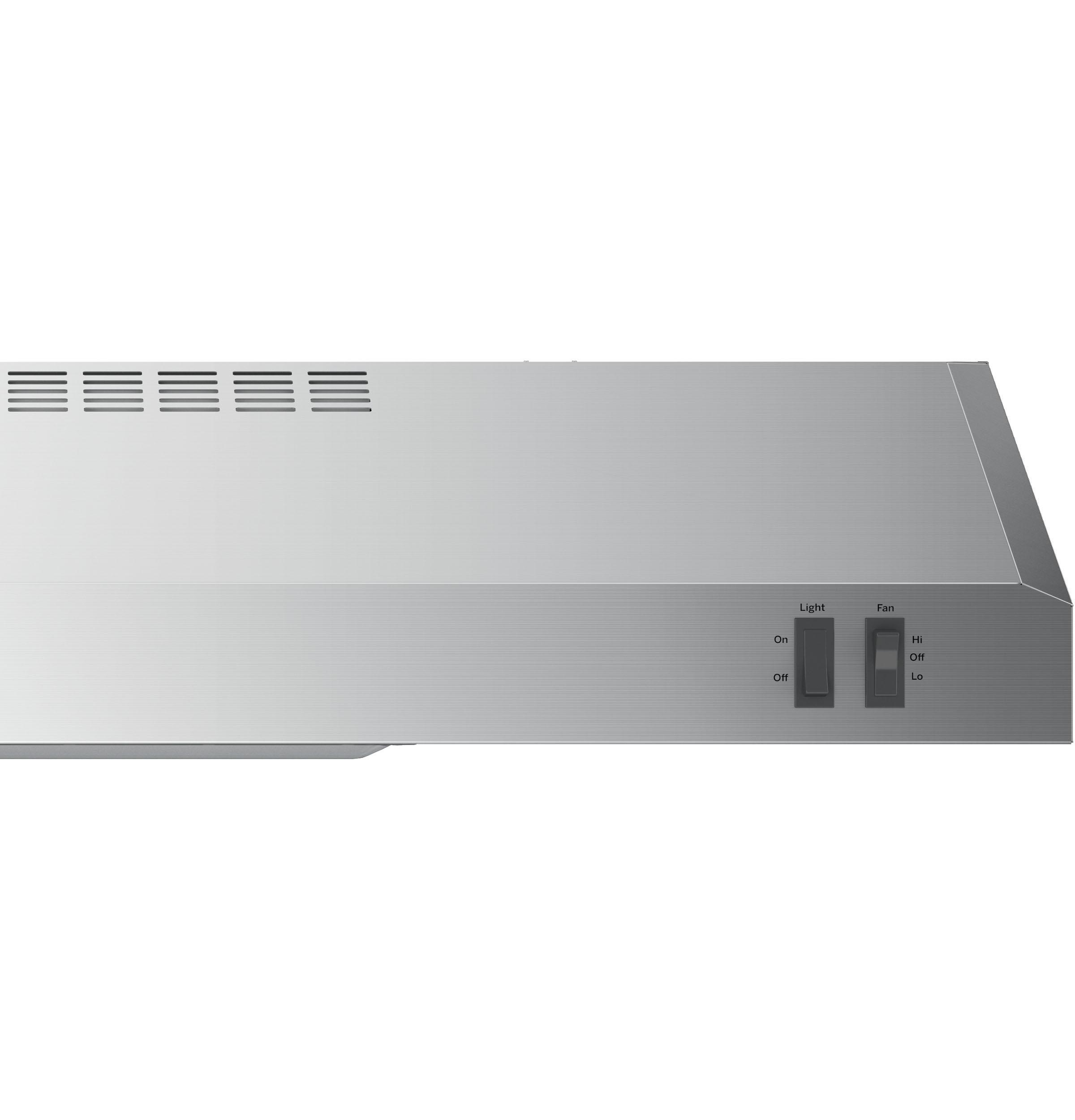

Front controls
Conveniently located on the front of the canopy, the simple switches let you adjust fan speed and lighting with ease
Cooktop lighting
Illuminate cooking space and surrounding surface - bulbs included
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Partially enclosed bottom)
Enjoy easy access to hood interior
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Optional power cord kit
Install your hood using a standard 3-prong, grounded outlet with the optional Power Cord Connection Kit (JXHC1, sold separately).
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
10 minutes or less by one person
Two-speed, 200-CFM venting system
Removes smoke, grease, odors and moisture
Front controls
Conveniently located on the front of the canopy, the simple switches let you adjust fan speed and lighting with ease
Cooktop lighting
Illuminate cooking space and surrounding surface - bulbs included
Convertible venting options
Select recirculating or external venting
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Partially enclosed bottom)
Enjoy easy access to hood interior
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Optional power cord kit
Install your hood using a standard 3-prong, grounded outlet with the optional Power Cord Connection Kit (JXHC1, sold separately).
Wall Switch Option
Can be converted for operation with a wall switch, offering added flexibility and ADA-compliant convenience
- Easy installation
- Two-speed, 200-CFM venting system
- Front controls
- Cooktop lighting
- Convertible venting options
- Vertical and rear exhaust
- Appearance (Partially enclosed bottom)
- Dishwasher-safe filter
- Optional power cord kit
- Wall Switch Option
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Quick Specs
View PDF for more information
Use and Care Manual
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Warranty
View PDF for more information
Wall Switch Installation
View PDF for more information
Quick Reference Guide
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Quick Reference Guide
View PDF for more information
Quick Reference Guide
View PDF for more information
Rebates
view available rebates
Specifications
Specifications
Product
Maximum Air Volume (CFM) Range
0 - 390
Maximum Air Volume (CFM) Range
- 0 - 390
Range Hood Type
Hood
Range Hood Type
- Hood
Range Hood Installation Type
Under-The-Cabinet
Range Hood Installation Type
- Under-The-Cabinet
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Duct Type
Ductless
Duct Type
- Ductless
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
5.5" H
Height (bottom to top)
- 5.5" H
Width (side to side)
29.875" W
Width (side to side)
- 29.875" W
Depth (front to back)
20" D
Depth (front to back)
- 20" D
Features & Function
Range Hood Features
ADA Compliant, Removable Grease Filter
Range Hood Features
- ADA Compliant
- Removable Grease Filter
Lighting
Incandescent
Lighting
- Incandescent
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
Range Hood Style
Under Cabinet
Range Hood Style
- Under Cabinet
Features
Easy installation, Two-speed, 200-CFM venting system, Front controls, Cooktop lighting, Convertible venting options, Vertical and rear exhaust, Appearance (Partially enclosed bottom), Dishwasher-safe filter, Optional power cord kit, Wall Switch Option
Misc Features
- Easy installation
- Two-speed, 200-CFM venting system
- Front controls
- Cooktop lighting
- Convertible venting options
- Vertical and rear exhaust
- Appearance (Partially enclosed bottom)
- Dishwasher-safe filter
- Optional power cord kit
- Wall Switch Option
FILTER
App Filter - Hood Type
Under Cabinet Hoods
App Filter - Hood Type
- Under Cabinet Hoods
App Filter - Venting Type
Convertible
App Filter - Venting Type
- Convertible
App Filter - Cabinet Width
Vent 30 in. (Standard)
App Filter - Cabinet Width
- Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color
Gray
Blower / Light Switch Color
- Gray
Material
Metal
Material
- Metal
Color Appearance
Stainless Steel
Color Appearance
- Stainless Steel
POWER / RATINGS
Watts
81
Watts
- 81
Hertz
60
Hertz
- 60
Electrical Requirements
120V ; 60Hz ; 2.5A
Electrical Requirements
- 120V ; 60Hz ; 2.5A
Amp Rating at 120V
2.5
Amp Rating at 120V
- 2.5
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type
Convertible
Venting Type
- Convertible
ACCESSORIES
Optional Accessories
JXHC1 - Power Cord Kit
Optional Accessories
- JXHC1 - Power Cord Kit
WEIGHTS & DIMENSIONS
Cabinet Width
30 in
Cabinet Width
- 30 in
Net Weight
17 lb
Net Weight
- 17 lb
Overall Depth
20 in
Overall Depth
- 20 in
Approximate Shipping Weight
23 lb
Approximate Shipping Weight
- 23 lb
Overall Height
5.5 in
Overall Height
- 5.5 in
Overall Width
29.875 in
Overall Width
- 29.875 in
FEATURES
Cooktop Lighting
1
Incandescent
Cooktop Lighting
- 1 Incandescent
Fan Speed Control
2-Speed
Fan Speed Control
- 2-Speed
Max CFM
200
Max CFM
- 200
Ducting
Vertical or Horizontal; 7" Round
Ducting
- Vertical or Horizontal; 7" Round
Light Controls
On/Off
Light Controls
- On/Off
Filter Cleaning
Dishwasher Safe
Filter Cleaning
- Dishwasher Safe
CFM/ Sones Rating
130/5.0 (Low Speed)
200/6.5 (High Speed)
CFM/ Sones Rating
- 130/5.0 (Low Speed) 200/6.5 (High Speed)
Exhaust Options
Recirculating
Vented to Outside
Exhaust Options
- Recirculating Vented to Outside
Product Type
Under Cabinet Hood
Product Type
- Under Cabinet Hood
Control Type
Rocker Switch
Control Type
- Rocker Switch
Control Location
Front
Control Location
- Front
Blower Type
Internal
Blower Type
- Internal
Charcoal Filter
JXCF53 - Included
Charcoal Filter
- JXCF53 - Included
Removable Grease Filter(s)
Yes
Removable Grease Filter(s)
- Yes
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Hoods Ge® 30" Under The Cabinet Hood, made by GE Appliances,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Hoods collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Reference #: JVX3300SJSS
