Color:
Stainless Steel
$339
Add To Cart To See Lowest Price
Save
$59.01
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
29.875" W
×
20" D
×
5.5" H
| Width (side to side) | 29.875 |
| Depth (front to back) | 20 |
| Height (bottom to top) | 5.5 |
Disclaimer
Description
Easy installation
10 minutes or less by one person
Four-speed with boost, 310-CFM venting system
Removes smoke, grease, odors and moisture

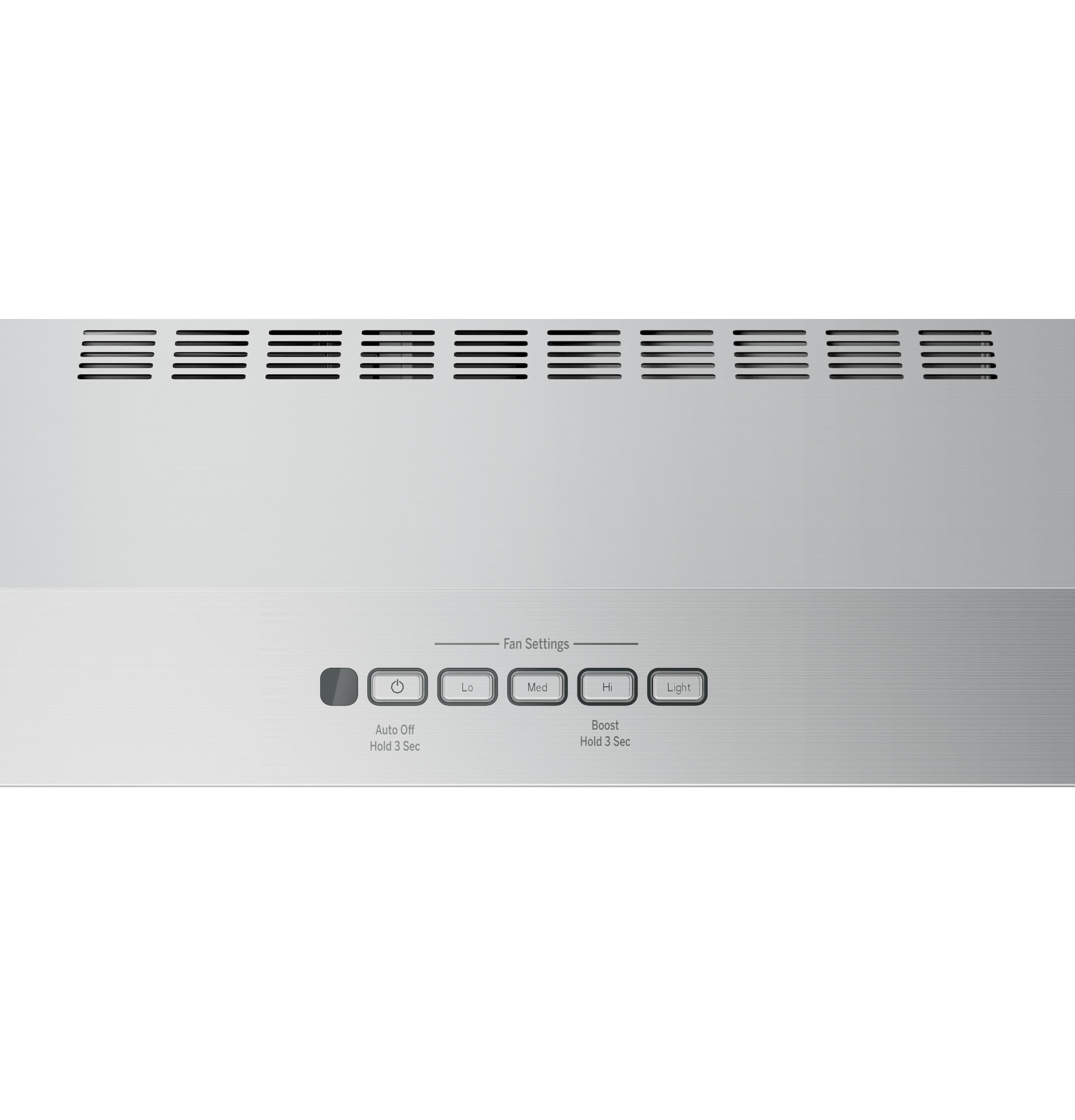

Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen lighting with nightlight
Enjoy better visibility with a brightly lit cooktop and surrounding surface - bulbs included
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen's specific ventilation setup
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle
Optional remote control
Control your ventilation lighting and fan speed from anywhere in the kitchen
10 minutes or less by one person
Four-speed with boost, 310-CFM venting system
Removes smoke, grease, odors and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen lighting with nightlight
Enjoy better visibility with a brightly lit cooktop and surrounding surface - bulbs included
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen's specific ventilation setup
Vertical and rear exhaust
Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom)
Enjoy a sleek appearance from every angle
Optional remote control
Control your ventilation lighting and fan speed from anywhere in the kitchen
- Easy installation
- Four-speed with boost, 310-CFM venting system
- Electronic backlit controls
- Dual halogen lighting with nightlight
- Auto-off
- Convertible venting options
- Vertical and rear exhaust
- Appearance (Fully enclosed bottom)
- Optional remote control
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Use and Care Manual
View PDF for more information
Warranty
View PDF for more information
Rebates
view available rebates
Specifications
Specifications
Product
Maximum Air Volume (CFM) Range
0 - 390
Maximum Air Volume (CFM) Range
- 0 - 390
Range Hood Type
Hood
Range Hood Type
- Hood
Range Hood Installation Type
Under-The-Cabinet
Range Hood Installation Type
- Under-The-Cabinet
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Duct Type
Ductless
Duct Type
- Ductless
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
5.5" H
Height (bottom to top)
- 5.5" H
Width (side to side)
29.875" W
Width (side to side)
- 29.875" W
Depth (front to back)
20" D
Depth (front to back)
- 20" D
Features & Function
Range Hood Features
ADA Compliant, Charcoal Filter, Remote Control Included, Removable Grease Filter
Range Hood Features
- ADA Compliant
- Charcoal Filter
- Remote Control Included
- Removable Grease Filter
Lighting
Dual halogen lighting with nightlight
Lighting
- Dual halogen lighting with nightlight
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
Range Hood Style
Under Cabinet
Range Hood Style
- Under Cabinet
Features
Easy installation, Four-speed with boost, 310-CFM venting system, Electronic backlit controls, Dual halogen lighting with nightlight, Auto-off, Convertible venting options, Vertical and rear exhaust, Appearance (Fully enclosed bottom), Optional remote control
Misc Features
- Easy installation
- Four-speed with boost, 310-CFM venting system
- Electronic backlit controls
- Dual halogen lighting with nightlight
- Auto-off
- Convertible venting options
- Vertical and rear exhaust
- Appearance (Fully enclosed bottom)
- Optional remote control
FILTER
App Filter - Hood Type
Under Cabinet Hoods
App Filter - Hood Type
- Under Cabinet Hoods
App Filter - Venting Type
Convertible
App Filter - Venting Type
- Convertible
App Filter - Cabinet Width
Vent 30 in. (Standard)
App Filter - Cabinet Width
- Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color
Backlit Gray
Blower / Light Switch Color
- Backlit Gray
Material
Metal
Material
- Metal
Color Appearance
Stainless Steel
Color Appearance
- Stainless Steel
POWER / RATINGS
Watts
188
Watts
- 188
Hertz
60
Hertz
- 60
Electrical Requirements
120V ; 60Hz ; 2.5A
Electrical Requirements
- 120V ; 60Hz ; 2.5A
Amp Rating at 120V
2.5
Amp Rating at 120V
- 2.5
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type
Convertible
Venting Type
- Convertible
ACCESSORIES
Optional Accessories
JXCF55 - Charcoal Filter
JXDA22 - GE Optional Damper Accessory
JXHC1 - Power Cord Kit
JXS50SS - 15" Cabinet Spacer for 30" Hoods
UXRC70 - Remote Control
Optional Accessories
- JXCF55 - Charcoal Filter JXDA22 - GE Optional Damper Accessory JXHC1 - Power Cord Kit JXS50SS - 15" Cabinet Spacer for 30" Hoods UXRC70 - Remote Control
WEIGHTS & DIMENSIONS
Cabinet Width
30 in
Cabinet Width
- 30 in
Net Weight
19 lb
Net Weight
- 19 lb
Overall Depth
20 in
Overall Depth
- 20 in
Approximate Shipping Weight
27 lb
Approximate Shipping Weight
- 27 lb
Overall Height
5.5 in
Overall Height
- 5.5 in
Overall Width
29.875 in
Overall Width
- 29.875 in
FEATURES
Cooktop Lighting
2
Halogen
Cooktop Lighting
- 2 Halogen
Fan Speed Control
4-Speed
Fan Speed Control
- 4-Speed
Max CFM
310
Max CFM
- 310
Ducting
Vertical or Horizontal; 7" Round
Ducting
- Vertical or Horizontal; 7" Round
Light Controls
On/Off/Night-Light
Light Controls
- On/Off/Night-Light
Filter Cleaning
Dishwasher Safe
Filter Cleaning
- Dishwasher Safe
CFM/ Sones Rating
170/3.0 (Medium Speed)
260/5.5 (High Speed)
310/7.0 (Boost Speed)
60/1.0 (Low Speed)
CFM/ Sones Rating
- 170/3.0 (Medium Speed) 260/5.5 (High Speed) 310/7.0 (Boost Speed) 60/1.0 (Low Speed)
Exhaust Options
Recirculating
Vented to Outside
Exhaust Options
- Recirculating Vented to Outside
Product Type
Under Cabinet Hood
Product Type
- Under Cabinet Hood
Remote Control
Optional (UXRC70)
Remote Control
- Optional (UXRC70)
Control Type
Backlit
Pushbutton
Control Type
- Backlit Pushbutton
Control Location
Front
Control Location
- Front
Blower Type
Internal
Blower Type
- Internal
Removable Grease Filter(s)
Yes
Removable Grease Filter(s)
- Yes
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Hoods Ge® 30" Under The Cabinet Hood, made by GE Appliances,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Hoods collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Reference #: JVX5300SJSS
