30”Designer Wall Mount Hood with Perimeter Venting Stainless Steel
SKU: UVW9301SLSS
$1,249
Your Price
$1,079.99
Save
$169.01
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question

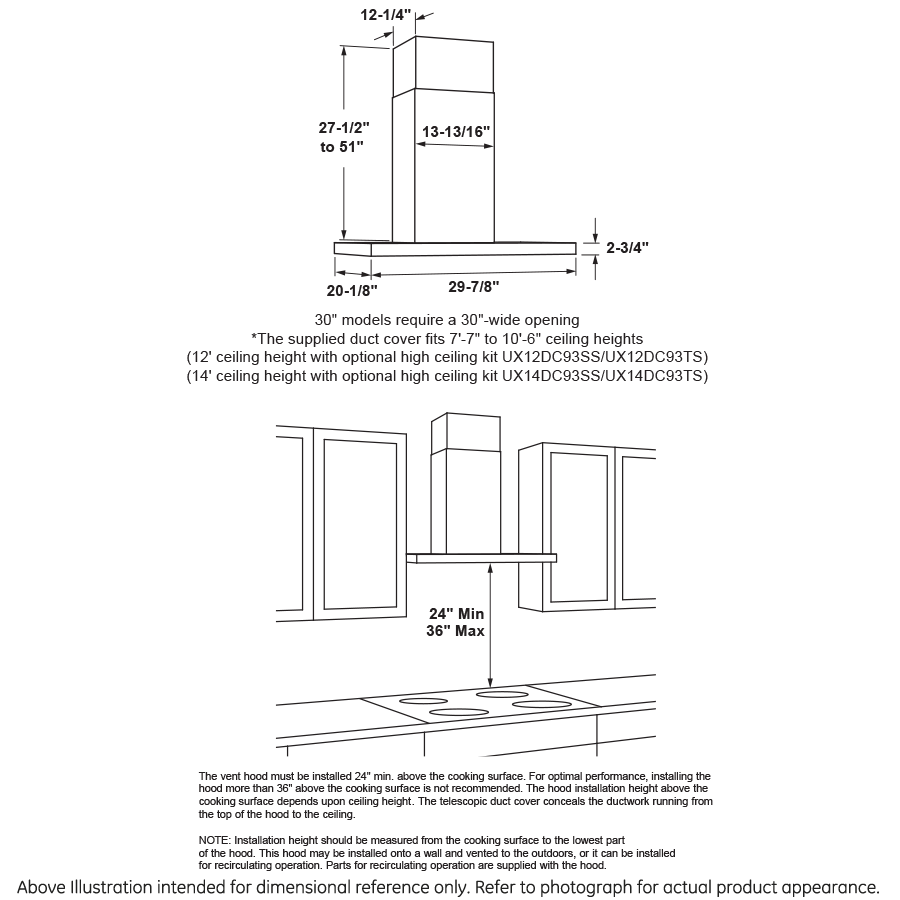

lessDimensions:
30" W
×
20" D
×
24" H
| Width (side to side) | 30 |
| Depth (front to back) | 20 |
| Height (bottom to top) | 24 |
Disclaimer
Description
610-CFM range hood blower with four-speed fan control
Remove smoke, grease, odors and moisture from the kitchen with four fan speeds that provide just the right amount of ventilation
Add a touch of light

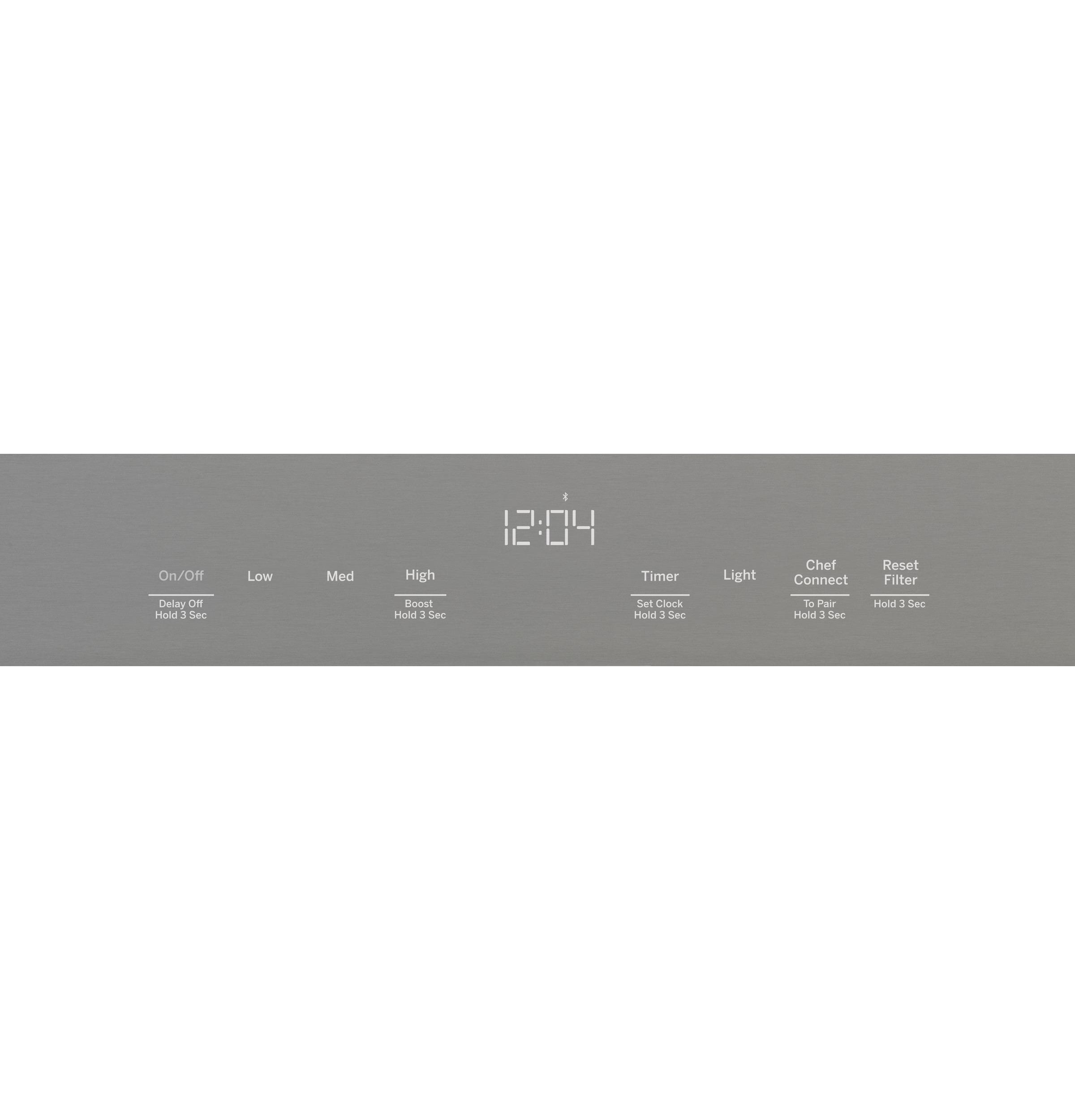

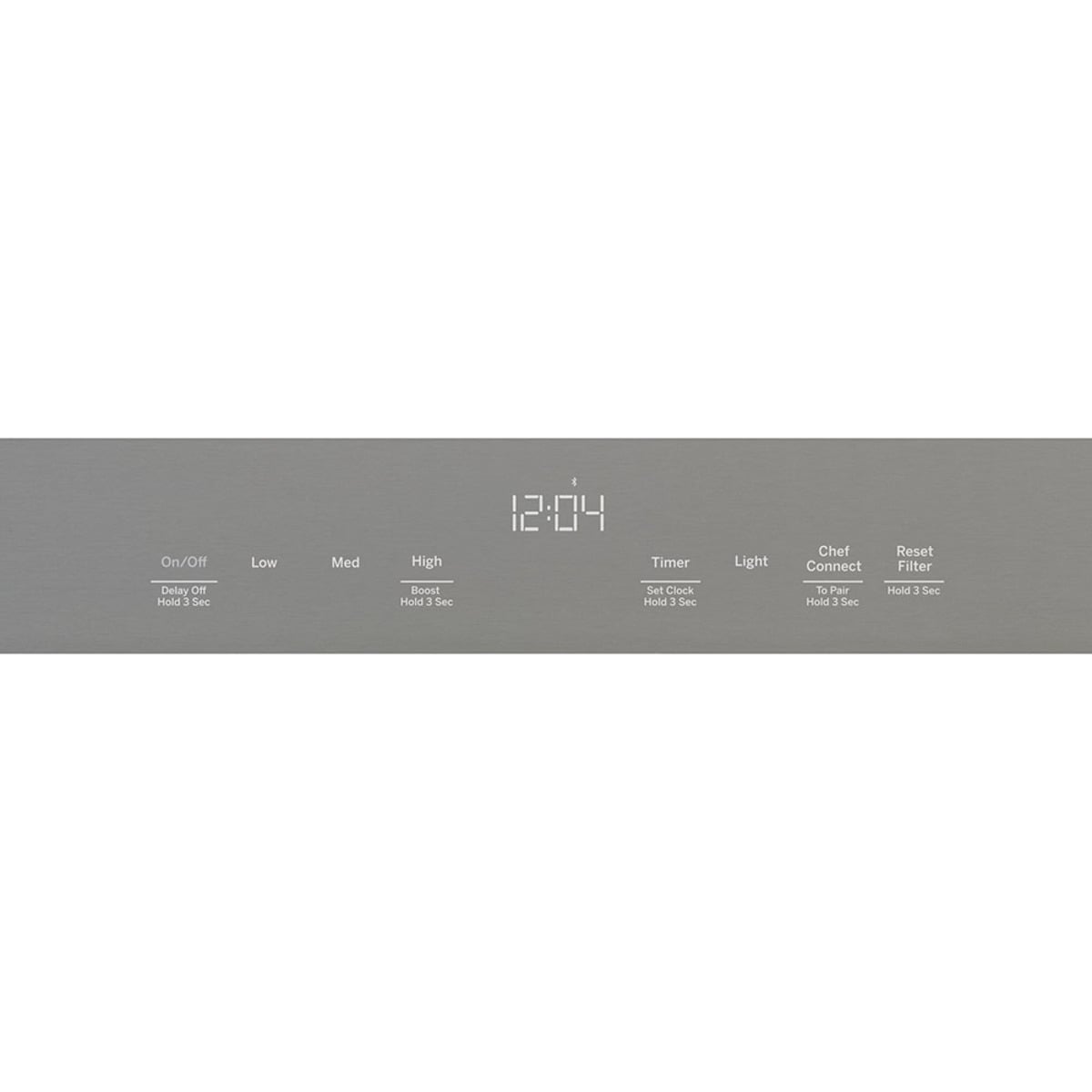

Make sure even the smallest details of your kitchen are impressive, with an easy-to-clean and easy-to-read LED backlit glass touch control
Have an edge when it comes to fresh kitchen air
Create a sleek look without sacrificing ventilation power. Perimeter venting captures smoke and odors beyond the edges of the range or cooktop while concealing the filters
Control from anywhere
Use a smart phone to turn your hood on while you're away from home or use the voice control feature for added convenience
Take your designs to new heights
Create a show-stopping design that will impress guests with duct cover extensions that reach all the way up to 10-foot ceilings. An optional 14-foot extension kit is also available
Set the stage for any meal
Create the right ambience any time of day with triple LED dimmable lighting. Bulbs are included
Freshen up your kitchen air
Recirculating or external convertible venting options, with all accessories included in the box, allow you to fill the kitchen with fresh air
Control at your fingertips
Share your favorite stories without interruption thanks to an included remote control that can change lighting and fan speed settings from anywhere in the kitchen
Perfectly timed all the time
Keep dinner parties on schedule with a bright timer and clock display that's always at the ideal height
A streamlined cooking experience is yours
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, and to sync your vent hood and range clocks
Remove smoke, grease, odors and moisture from the kitchen with four fan speeds that provide just the right amount of ventilation
Add a touch of light
Make sure even the smallest details of your kitchen are impressive, with an easy-to-clean and easy-to-read LED backlit glass touch control
Have an edge when it comes to fresh kitchen air
Create a sleek look without sacrificing ventilation power. Perimeter venting captures smoke and odors beyond the edges of the range or cooktop while concealing the filters
Control from anywhere
Use a smart phone to turn your hood on while you're away from home or use the voice control feature for added convenience
Take your designs to new heights
Create a show-stopping design that will impress guests with duct cover extensions that reach all the way up to 10-foot ceilings. An optional 14-foot extension kit is also available
Set the stage for any meal
Create the right ambience any time of day with triple LED dimmable lighting. Bulbs are included
Freshen up your kitchen air
Recirculating or external convertible venting options, with all accessories included in the box, allow you to fill the kitchen with fresh air
Control at your fingertips
Share your favorite stories without interruption thanks to an included remote control that can change lighting and fan speed settings from anywhere in the kitchen
Perfectly timed all the time
Keep dinner parties on schedule with a bright timer and clock display that's always at the ideal height
A streamlined cooking experience is yours
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, and to sync your vent hood and range clocks
- 610-CFM range hood blower with four-speed fan control
- Add a touch of light
- Have an edge when it comes to fresh kitchen air
- Control from anywhere
- Take your designs to new heights
- Set the stage for any meal
- Freshen up your kitchen air
- Control at your fingertips
- Perfectly timed all the time
- A streamlined cooking experience is yours
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Rebates
view available rebates
Specifications
Specifications
Product
Maximum Air Volume (CFM) Range
400 - 790
Maximum Air Volume (CFM) Range
- 400 - 790
Range Hood Type
Hood, Insert
Range Hood Type
- Hood
- Insert
Wi-Fi Enabled
Yes
Wi-Fi Enabled
- Yes
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Duct Type
Ductless
Duct Type
- Ductless
Energy Star Compliant
No
Energy Star Compliant
- No
Range Hood Installation Type
Wall Mounted
Range Hood Installation Type
- Wall Mounted
Dimensions
Height (bottom to top)
24" H
Height (bottom to top)
- 24" H
Width (side to side)
30" W
Width (side to side)
- 30" W
Depth (front to back)
20" D
Depth (front to back)
- 20" D
Features & Function
Range Hood Features
Smart Compatible, Wi-Fi Enabled
Range Hood Features
- Smart Compatible
- Wi-Fi Enabled
Lighting
Triple LED dimmable lighting
Lighting
- Triple LED dimmable lighting
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
FILTER
App Filter-Multi Brand
Cafe
GE
Monogram
App Filter-Multi Brand
- Cafe GE Monogram
App Filter - Hood Type
Designer (includes "canopy" and "chimney")
App Filter - Hood Type
- Designer (includes "canopy" and "chimney")
App Filter - Venting Type
Convertible
App Filter - Venting Type
- Convertible
App Filter - Cabinet Width
Vent 30 in. (Standard)
App Filter - Cabinet Width
- Vent 30 in. (Standard)
APPEARANCE
Blower / Light Switch Color
Backlit
Blower / Light Switch Color
- Backlit
Material
Steel
Material
- Steel
Color Appearance
Stainless Steel
Color Appearance
- Stainless Steel
POWER / RATINGS
Watts
332
Watts
- 332
Hertz
60
Hertz
- 60
Electrical Requirements
120V ; 60Hz ; 5.3A
Electrical Requirements
- 120V ; 60Hz ; 5.3A
Amp Rating at 120V
5.3
Amp Rating at 120V
- 5.3
WARRANTY
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
ECONOMICAL / QUIET
Venting Type
Convertible
Venting Type
- Convertible
ACCESSORIES
Optional Accessories
JXHC1 - Power Cord Kit
UX12DC9SLSS - 12' High Ceiling Duct Cover Kit
UX14DC9SLSS - 14' High Ceiling Duct Cover Kit
UXRC70 - Remote Control
Optional Accessories
- JXHC1 - Power Cord Kit UX12DC9SLSS - 12' High Ceiling Duct Cover Kit UX14DC9SLSS - 14' High Ceiling Duct Cover Kit UXRC70 - Remote Control
WEIGHTS & DIMENSIONS
Cabinet Width
30 in
Cabinet Width
- 30 in
Net Weight
70 lb
Net Weight
- 70 lb
Overall Depth
20 in
Overall Depth
- 20 in
Approximate Shipping Weight
80 lb
Approximate Shipping Weight
- 80 lb
Overall Height
24 in
Overall Height
- 24 in
Overall Width
30 in
Overall Width
- 30 in
FEATURES
WiFi Connect
Built-In
WiFi Connect
- Built-In
Cooktop Lighting
3
LED
Cooktop Lighting
- 3 LED
Fan Speed Control
4-Speed
Fan Speed Control
- 4-Speed
Max CFM
450
Max CFM
- 450
Required Duct Size
8" Round
Required Duct Size
- 8" Round
Ducting
Vertical Only
Ducting
- Vertical Only
Light Controls
On/Off/Night
Light Controls
- On/Off/Night
Filter Cleaning
Dishwasher Safe
Filter Cleaning
- Dishwasher Safe
CFM/ Sones Rating
450/8.0 (Boost Speed) - Vertical venting
CFM/ Sones Rating
- 450/8.0 (Boost Speed) - Vertical venting
Time Delay Shut-Off
Yes
Time Delay Shut-Off
- Yes
Exhaust Options
Recirculating
Vented to Outside
Exhaust Options
- Recirculating Vented to Outside
8" Round Duct
Yes
8" Round Duct
- Yes
Product Type
Designer Hood
Product Type
- Designer Hood
Control Features
Timer/Clock
Control Features
- Timer/Clock
Control Type
Electronic Touch
Control Type
- Electronic Touch
Connected Capabilities
Amazon Alexa
Google Home
Connected Capabilities
- Amazon Alexa Google Home
Removable Filter
Grease & Charcoal included
Removable Filter
- Grease & Charcoal included
Control Location
Front
Control Location
- Front
Charcoal Filter
UXCF91
Charcoal Filter
- UXCF91
Features
610-CFM range hood blower with four-speed fan control, Add a touch of light, Have an edge when it comes to fresh kitchen air, Control from anywhere, Take your designs to new heights, Set the stage for any meal, Freshen up your kitchen air, Control at your fingertips, Perfectly timed all the time, A streamlined cooking experience is yours
Misc Features
- 610-CFM range hood blower with four-speed fan control
- Add a touch of light
- Have an edge when it comes to fresh kitchen air
- Control from anywhere
- Take your designs to new heights
- Set the stage for any meal
- Freshen up your kitchen air
- Control at your fingertips
- Perfectly timed all the time
- A streamlined cooking experience is yours
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Hoods 30”Designer Wall Mount Hood with Perimeter Venting Stainless Steel, made by GE Appliances,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Hoods collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Reference #: UVW9301SLSS
