20" Custom Hood Insert with Dimmable LED Lighting Stainless Steel

SKU: UVC7300SLSS
Paul's Picks
$419
Your Price $377.99
Save $41.01 info
Price with selected options:
Qty:

Where Can I See This Product in Store?

more
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

less
First Name is required
Last Name is required
Email Address is required
Message is required
Preferred Store is required

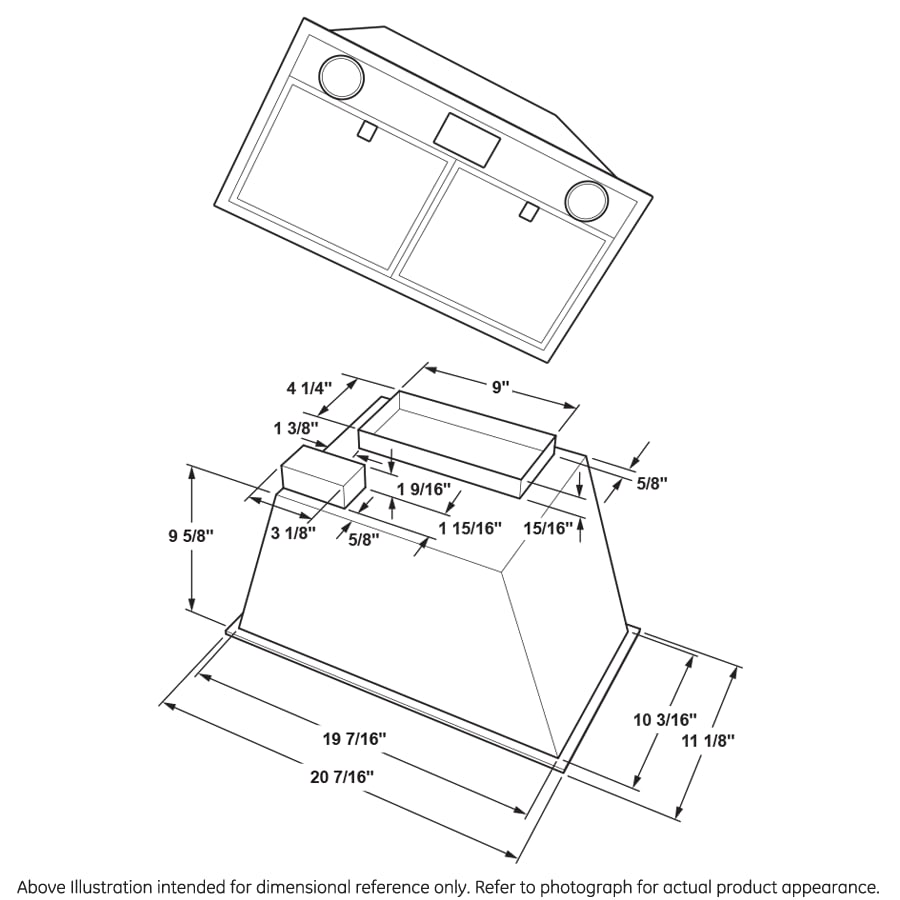

Dimensions:

20.44" W × 11.13" D × 7.93" H
remove add
Width (side to side) 20.44
Depth (front to back) 11.13
Height (bottom to top) 7.93

Disclaimer

remove add

Description

remove add
390-CFM Blower
Keep guests comfortable in every way with a 390-CFM blower that removes smoke, grease, odors and moisture from the kitchen

Because everything from plating to lighting matters
Create the right ambience any time of day with double LED dimmable lighting that illuminates the cooktop or range. Bulbs are included

Pushing buttons has never been more refreshing

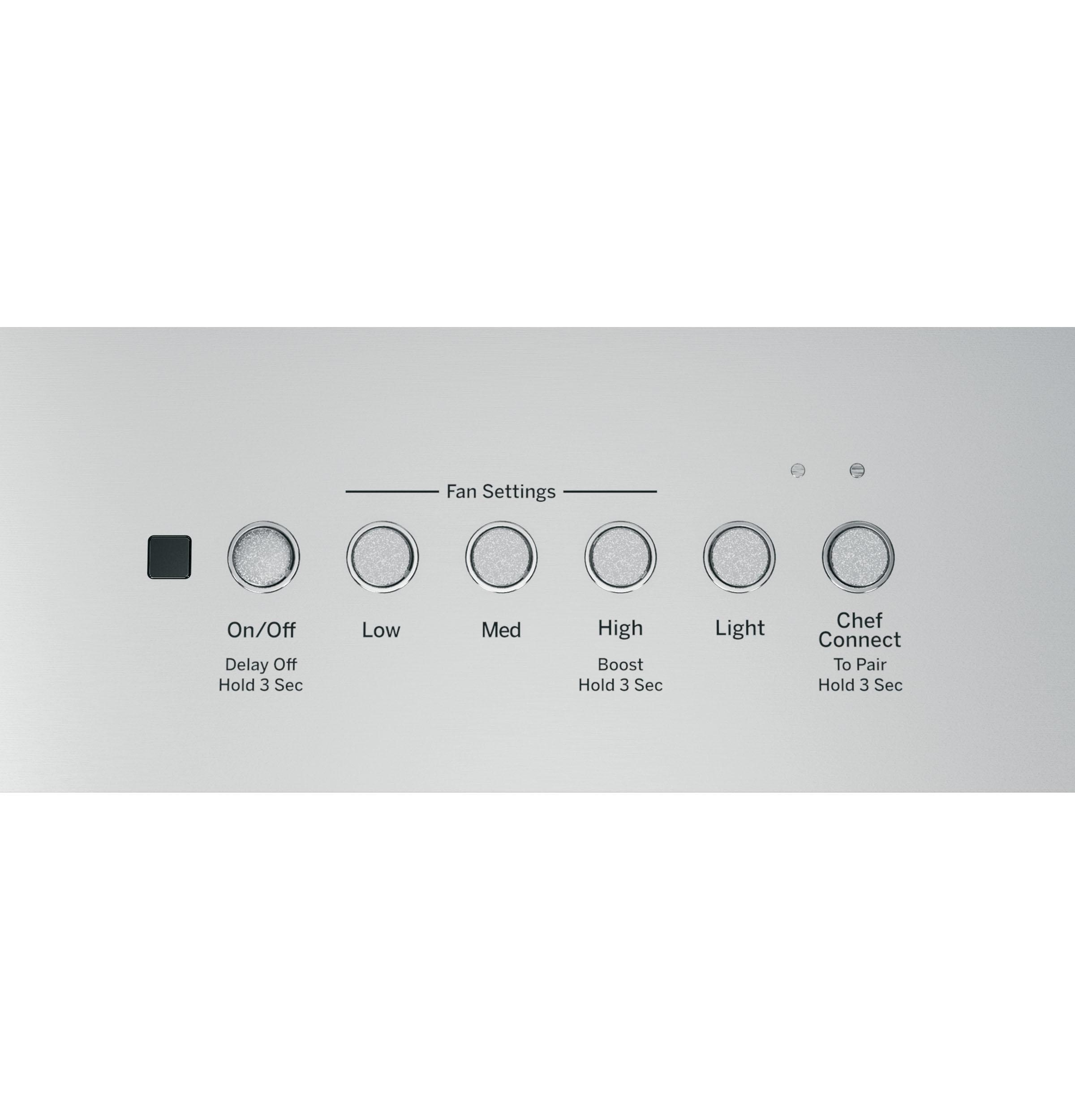

Never miss a beat while entertaining, with easy-to-read and easy-to-use push-button controls

Freshen up your kitchen air
Fill the kitchen with fresh air with two convertible venting options: recirculating or external venting

Control at your fingertips
Share your favorite stories without interruption thanks to an included remote control that can change lighting and fan speed settings from anywhere in the kitchen

Clean up cleaning up
Simplify clean-up with a dishwasher-safe filter that removes grease and can be cleaned alongside dishes too

Heat Sensor
This temperature sensor range hood will automatically turn on if the heat sensor detects high temperatures, preventing damage by reducing heat

A streamlined cooking experience is yours
Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, and to sync your vent hood and range clocks
  • 390-CFM Blower
  • Because everything from plating to lighting matters
  • Pushing buttons has never been more refreshing
  • Freshen up your kitchen air
  • Control at your fingertips
  • Clean up cleaning up
  • Heat Sensor
  • A streamlined cooking experience is yours
Quick Specs
Quick Specs
View PDF for more information
Quick Specs
Quick Specs
View PDF for more information
Quick Specs
Quick Specs
View PDF for more information
Quick Specs
Quick Specs
View PDF for more information
Quick Specs
Quick Specs
View PDF for more information
Quick Specs
Quick Specs
View PDF for more information
Installation Instructions
Installation Instructions
View PDF for more information
Installation Instructions
Installation Instructions
View PDF for more information
Installation Instructions
Installation Instructions
View PDF for more information
Installation Instructions
Installation Instructions
View PDF for more information
Installation Instructions
Installation Instructions
View PDF for more information
Installation Instructions
Installation Instructions
View PDF for more information

Rebates

view available rebates
20" Custom Hood Insert with Dimmable LED Lighting Stainless Steel
20" Custom Hood Insert with Dimmable LED Lighting Stainless Steel
Hoods Collection
$419
Your Price $377.99
Save $41.01 info

Specifications

Specifications

remove add

Product

Maximum Air Volume (CFM) Range 0 - 390
Maximum Air Volume (CFM) Range
  • 0 - 390
Range Hood Type Insert
Range Hood Type
  • Insert
Appliance Color Stainless Steel
Appliance Color
  • Stainless Steel
Energy Star Compliant No
Energy Star Compliant
  • No
Range Hood Installation Type Insert
Range Hood Installation Type
  • Insert
Duct Type Convertible
Duct Type
  • Convertible

Dimensions

Height (bottom to top) 7.93" H
Height (bottom to top)
  • 7.93" H
Width (side to side) 20.44" W
Width (side to side)
  • 20.44" W
Depth (front to back) 11.13" D
Depth (front to back)
  • 11.13" D

Features & Function

Range Hood Features ADA Compliant, Charcoal Filter, Remote Control Included, Removable Grease Filter
Range Hood Features
  • ADA Compliant
  • Charcoal Filter
  • Remote Control Included
  • Removable Grease Filter
Lighting Dual LED dimmable lighting
Lighting
  • Dual LED dimmable lighting

Style Elements

Color Family Stainless Steel
Color Family
  • Stainless Steel
Color Name Stainless Steel
Color Name
  • Stainless Steel

FILTER

App Filter-Multi Brand Cafe GE
App Filter-Multi Brand
  • Cafe GE
App Filter - Hood Type Custom Hood Insert
App Filter - Hood Type
  • Custom Hood Insert
App Filter - Venting Type Convertible
App Filter - Venting Type
  • Convertible

APPEARANCE

Custom Insert Yes
Custom Insert
  • Yes
Material Steel
Material
  • Steel
Design Style Custom
Design Style
  • Custom
Color Appearance Stainless Steel
Color Appearance
  • Stainless Steel

POWER / RATINGS

Watts 223
Watts
  • 223
Hertz 60
Hertz
  • 60
Electrical Requirements 120V ; 60Hz ; 2.9A
Electrical Requirements
  • 120V ; 60Hz ; 2.9A
Amp Rating at 120V 2.9
Amp Rating at 120V
  • 2.9

WARRANTY

Labor Warranty Limited 1-year entire appliance
Labor Warranty
  • Limited 1-year entire appliance
Warranty Notes See written warranty for full details
Warranty Notes
  • See written warranty for full details
Parts Warranty Limited 1-year entire appliance
Parts Warranty
  • Limited 1-year entire appliance

ECONOMICAL / QUIET

Venting Type Convertible
Venting Type
  • Convertible

ACCESSORIES

Optional Accessories UXHL30 - 30" Hood Liner UXHL36 - 36" Hood Liner
Optional Accessories
  • UXHL30 - 30" Hood Liner UXHL36 - 36" Hood Liner

WEIGHTS & DIMENSIONS

Cabinet Width 30 in
Cabinet Width
  • 30 in
Net Weight 30 lb
Net Weight
  • 30 lb
Overall Depth 11.25 in
Overall Depth
  • 11.25 in
Approximate Shipping Weight 40 lb
Approximate Shipping Weight
  • 40 lb
Overall Height 9.625 in
Overall Height
  • 9.625 in
Overall Width 20.5 in
Overall Width
  • 20.5 in

FEATURES

Cooktop Lighting 2 LED
Cooktop Lighting
  • 2 LED
Fan Speed Control 4-Speed
Fan Speed Control
  • 4-Speed
Max CFM 390
Max CFM
  • 390
Light Controls On/Off/Night
Light Controls
  • On/Off/Night
CFM/ Sones Rating 390/6.5 (Boost Speed) - Vertical venting
CFM/ Sones Rating
  • 390/6.5 (Boost Speed) - Vertical venting
Exhaust Options Recirculating Vented to Outside
Exhaust Options
  • Recirculating Vented to Outside
8" Round Duct Yes
8" Round Duct
  • Yes
Product Type Custom Hood Insert
Product Type
  • Custom Hood Insert
Control Features Chef Connect Delay Off Heat Sensor
Control Features
  • Chef Connect Delay Off Heat Sensor
Remote Control Included
Remote Control
  • Included
Control Type Electronic
Control Type
  • Electronic
Indicator Lights "ON"
Indicator Lights
  • "ON"
Charcoal Filter UXCF91
Charcoal Filter
  • UXCF91
Removable Grease Filter(s) Yes
Removable Grease Filter(s)
  • Yes

Features

390-CFM Blower, Because everything from plating to lighting matters, Pushing buttons has never been more refreshing, Freshen up your kitchen air, Control at your fingertips, Clean up cleaning up, Heat Sensor, A streamlined cooking experience is yours
Misc Features
  • 390-CFM Blower
  • Because everything from plating to lighting matters
  • Pushing buttons has never been more refreshing
  • Freshen up your kitchen air
  • Control at your fingertips
  • Clean up cleaning up
  • Heat Sensor
  • A streamlined cooking experience is yours

Item & Dimensions

Manufacturer GE Appliances
Manufacturer
  • GE Appliances
The Hoods 20" Custom Hood Insert with Dimmable LED Lighting Stainless Steel, made by GE Appliances, is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary. Contact us for the most current availability on this product.

Collection Details

The Hoods collection is an amazing option if you are looking for Appliances. Our store serves the Peoria, Normal, and Peru, IL area.
Reference #: UVC7300SLSS
