Appliances keyboard_arrow_right Cooktop keyboard_arrow_right Thermador Gas Ranges Cooktops (Gas)

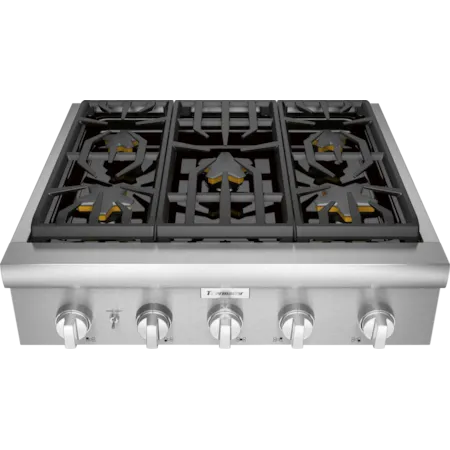

Pcg305w Gas Rangetop 30'' Stainless Steel

Name: Gas Ranges Cooktops (Gas)
Brand: Thermador

Gas Ranges Collection by Thermador

SKU: PCG305W

Be the first to write a review

Call for Best Price

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Ask a Question

less

First Name *

First Name is required

Last Name *

Last Name is required

Email Address *

Email Address is required

How can we help you? *

Message is required

Sign-up for email offers and promotions

Preferred Store *

Preferred Store is required

Important Field Do you agree to the terms of service? (*Required)

Really Important Field

Dimensions:

29.937" W × 25.81" D × 8.125" H

remove add

Width (side to side)	29.937
Depth (front to back)	25.81
Height (bottom to top)	8.125

see more specs

Disclaimer

remove add

Description

remove add

Our Patented Five-point Design Provides Equal Flame Distribution for Even Cooking.
2 Burners Offer Precise Settings That Are Perfect for Simmering Meals or Melting Chocolate Without Burning.
This Extra High Heat Burner Is the Optimal Choice for Rapid Boiling and High Heat Searing.
Clearly Illuminate the Control Panel With Ample Lighting.

User manuals

View PDF for more information

Product Specification Sheet

View PDF for more information

Supplemental Resources

View PDF for more information

Supplemental Resources

View PDF for more information

Supplemental Resources

View PDF for more information

Supplemental Resources

View PDF for more information

Installation Instruction

View PDF for more information

Supplemental Resources

View PDF for more information

Installation Instruction

View PDF for more information

Supplemental Resources

View PDF for more information

Installation Instruction

View PDF for more information

Supplemental Resources

View PDF for more information

Installation Instruction

View PDF for more information

Supplemental Resources

View PDF for more information

Installation Instruction

View PDF for more information

Installation Instruction

View PDF for more information

Installation Instructions

View PDF for more information

Installation Instructions

View PDF for more information

Installation Instructions

View PDF for more information

Installation Instructions

View PDF for more information

Supplement

View PDF for more information

Supplement

View PDF for more information

Product Specification Sheet

View PDF for more information

Supplement

View PDF for more information

Product Specification Sheet

View PDF for more information

Supplement

View PDF for more information

Product Specification Sheet

View PDF for more information

Supplement

View PDF for more information

Product Specification Sheet

View PDF for more information

Supplement

View PDF for more information

Instructions for Use

View PDF for more information

Instructions for Use

View PDF for more information

Instructions for Use

View PDF for more information

Instructions for Use

View PDF for more information

Supplement

View PDF for more information

Supplement

View PDF for more information

Installation Instructions

View PDF for more information

Installation Instructions

View PDF for more information

Installation Instructions

View PDF for more information

Installation Instructions

View PDF for more information

Rebates

view available rebates

Pcg305w Gas Rangetop 30'' Stainless Steel

Gas Ranges Collection

Specifications

Product

Warm Drawer No

Warm Drawer

Sabbath Mode Yes

Sabbath Mode

Wi-Fi Enabled No

Wi-Fi Enabled

Appliance Fuel Type Gas

Appliance Fuel Type

Self Clean No

Self Clean

Appliance Color Stainless Steel

Appliance Color

Stainless Steel

Convection No

Convection

Proof Mode No

Proof Mode

Hidden Bake Element No

Hidden Bake Element

ADA Compliant No

ADA Compliant

Cooktop Type Gas

Cooktop Type

Energy Star Compliant No

Energy Star Compliant

Dimensions

Height (bottom to top) 8.125" H

Height (bottom to top)

8.125" H

Width (side to side) 29.937" W

Width (side to side)

29.937" W

Depth (front to back) 25.81" D

Depth (front to back)

25.81" D

Storage

Has Storage Drawer No

Has Storage Drawer

Features & Function

Number of Burners 5

Number of Burners

Refrigerator Features Sabbath Mode

Refrigerator Features

Sabbath Mode

Maximum Spin Speed (RPM) -1.0

Maximum Spin Speed (RPM)

-1.0

Style Elements

Color Family Stainless Steel

Color Family

Stainless Steel

Color Name Stainless Steel

Color Name

Stainless Steel

General

Total NG BTUs 59000

Total NG BTUs

59000

Total LP BTUs 49000

Total LP BTUs

49000

ExtraLow® Burners Yes

ExtraLow® Burners

Installation

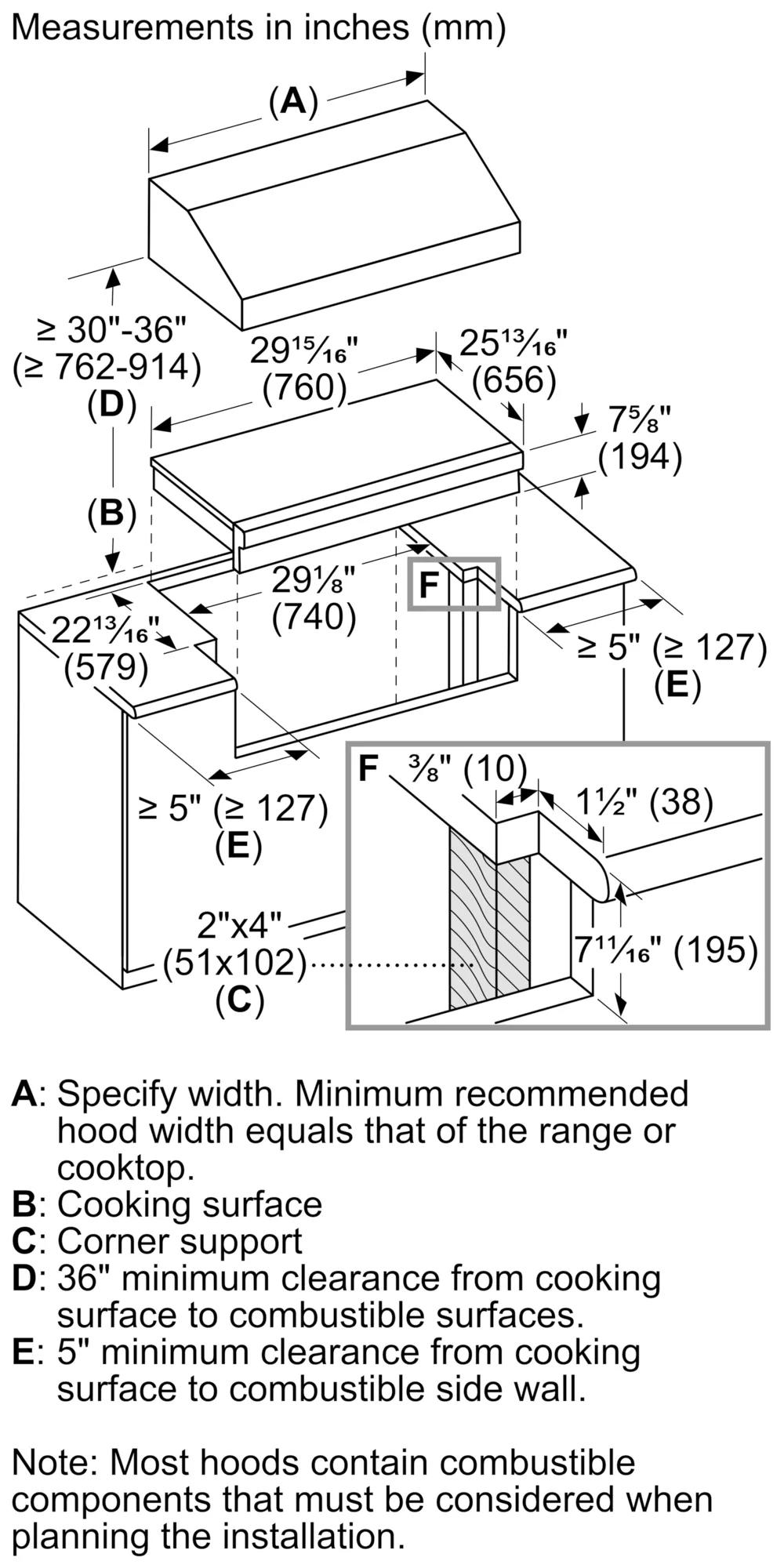

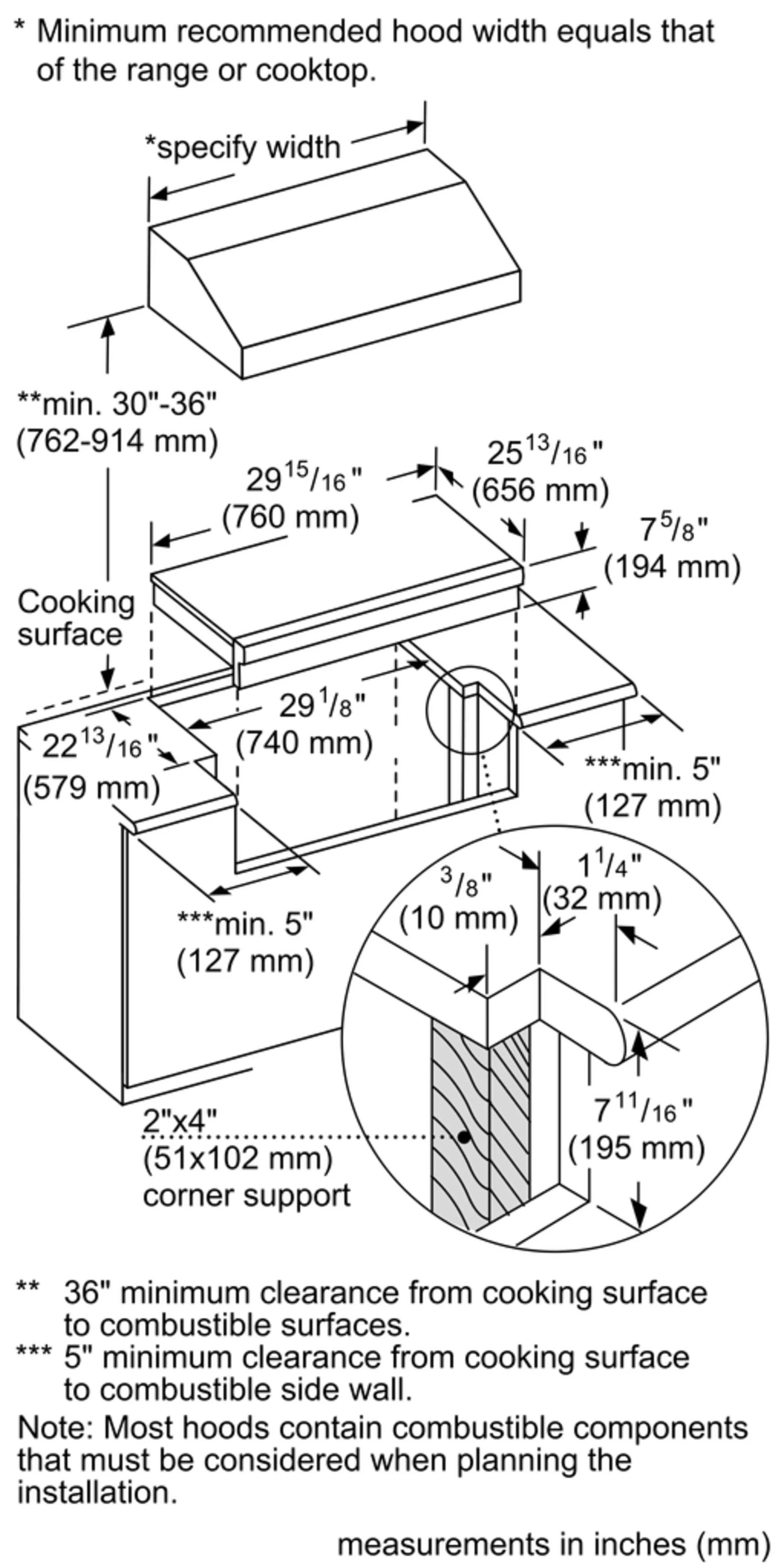

Overall Appliance Dimensions (HxWxD) (in) 10 9/16'' x 29 15/16'' x 25 13/16''

Overall Appliance Dimensions (HxWxD) (in)

10 9/16'' x 29 15/16'' x 25 13/16''

Required Cutout Size (HxWxD) (in) 10 9/16'' x 29 1/8'' x 7 11/16''

Required Cutout Size (HxWxD) (in)

10 9/16'' x 29 1/8'' x 7 11/16''

Gas type preset Natural gas 15 mbar (USA)

Gas type preset

Natural gas 15 mbar (USA)

Alternative Gas Type (Nozzle Set Included) Liquid gas 27,5 mbar (USA)

Alternative Gas Type (Nozzle Set Included)

Liquid gas 27,5 mbar (USA)

Plug Type 120V-3 prong

Plug Type

120V-3 prong

Power Cord Length 96''

Power Cord Length

96''

Amps 10

Amps

Volts 120

Volts

Product Packaging Dimensions (HxWxD) 20 1/2" x 43 1/2" x 40 1/2"

Product Packaging Dimensions (HxWxD)

20 1/2" x 43 1/2" x 40 1/2"

Design

Surface Materials Porcelain, Steel

Surface Materials

Porcelain, Steel

Grate Materials Cast Iron with Rubber Feet

Grate Materials

Cast Iron with Rubber Feet

Location of Control Panel Front

Location of Control Panel

Front

Comfort and Convenience

Number of Gas Burners 5

Number of Gas Burners

Pedestal Star® Burners Yes

Pedestal Star® Burners

Sealed Burners No

Sealed Burners

ExtraLow® Burners Yes

ExtraLow® Burners

Special Features Reignition

Special Features

Reignition

Griddle No

Griddle

ADA Compliant (When Installed to ADA requirements) No

ADA Compliant (When Installed to ADA requirements)

Connectivity

Home Connect® WiFi-enabled No

Home Connect® WiFi-enabled

Safety

Safety Flame failure safety device for each burner,

Safety

Flame failure safety device for each burner,

Accessories

Included Accessories 3 x cast iron pan support, 1 x island trim

Included Accessories

3 x cast iron pan support, 1 x island trim

Features

Our Patented Five-point Design Provides Equal Flame Distribution for Even Cooking., 2 Burners Offer Precise Settings That Are Perfect for Simmering Meals or Melting Chocolate Without Burning., This Extra High Heat Burner Is the Optimal Choice for Rapid Boiling and High Heat Searing., Clearly Illuminate the Control Panel With Ample Lighting.

Misc Features

Our Patented Five-point Design Provides Equal Flame Distribution for Even Cooking.
2 Burners Offer Precise Settings That Are Perfect for Simmering Meals or Melting Chocolate Without Burning.
This Extra High Heat Burner Is the Optimal Choice for Rapid Boiling and High Heat Searing.
Clearly Illuminate the Control Panel With Ample Lighting.

Item & Dimensions

Manufacturer Thermador

Manufacturer

Thermador

The Gas Ranges Pcg305w Gas Rangetop 30'' Stainless Steel, made by Thermador, is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary. Contact us for the most current availability on this product.

Collection Details

The Gas Ranges collection is an amazing option if you are looking for Appliances. Our store serves the Peoria, Normal, and Peru, IL area.
