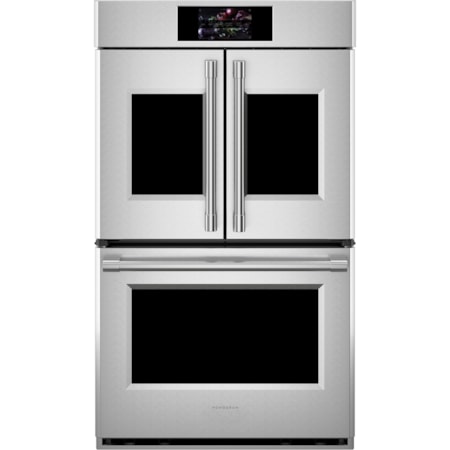

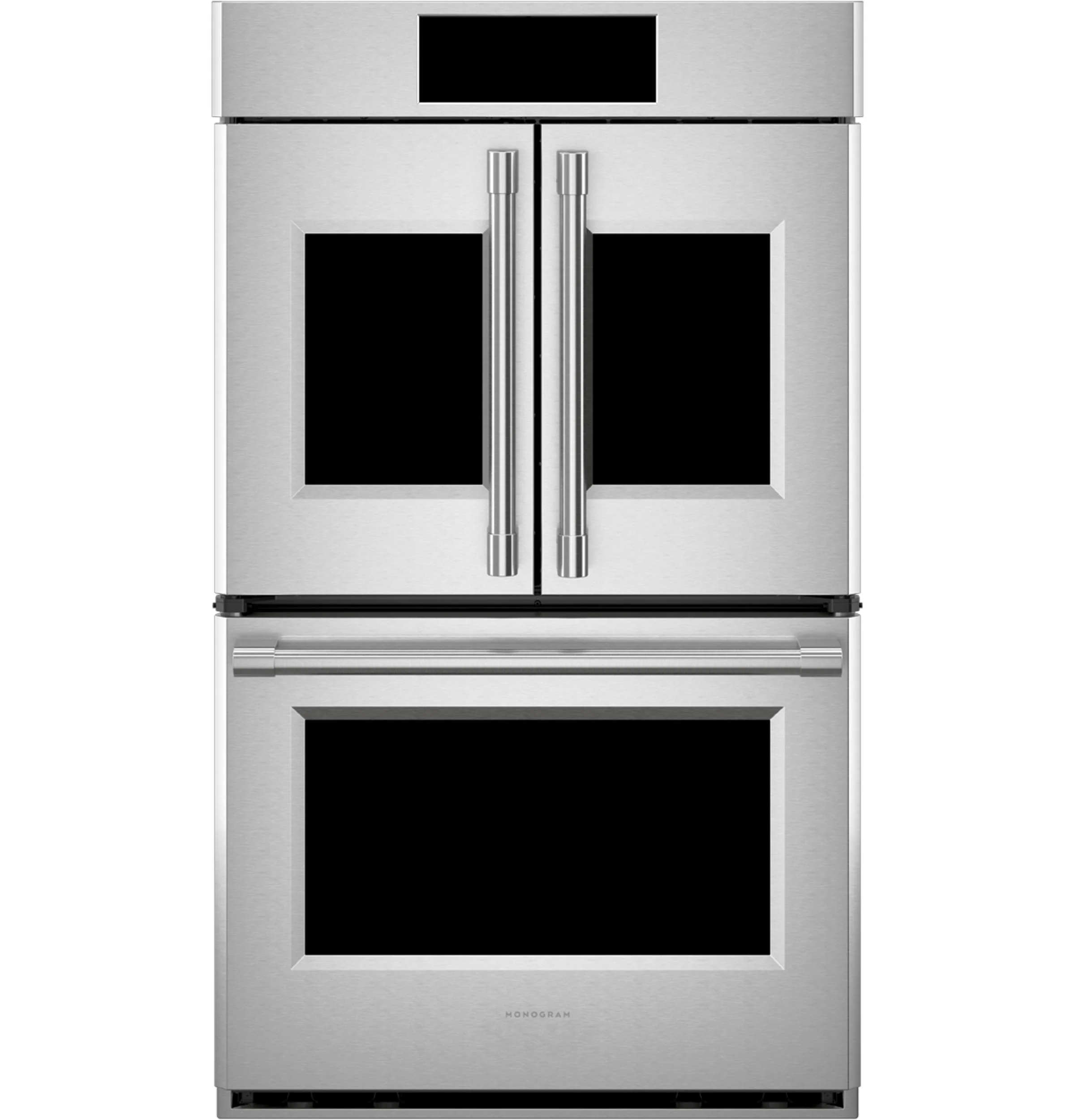

Monogram 30" Statement French-Door Double Wall Oven
SKU: ZTDX1FPSNSS
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
29.75" W
×
27.5" D
×
51.18" H
| Width (side to side) | 29.75 |
| Depth (front to back) | 27.5 |
| Height (bottom to top) | 51.18 |
| Oven Cubic Feet Capacity | 10 |
Disclaimer
Description
The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty

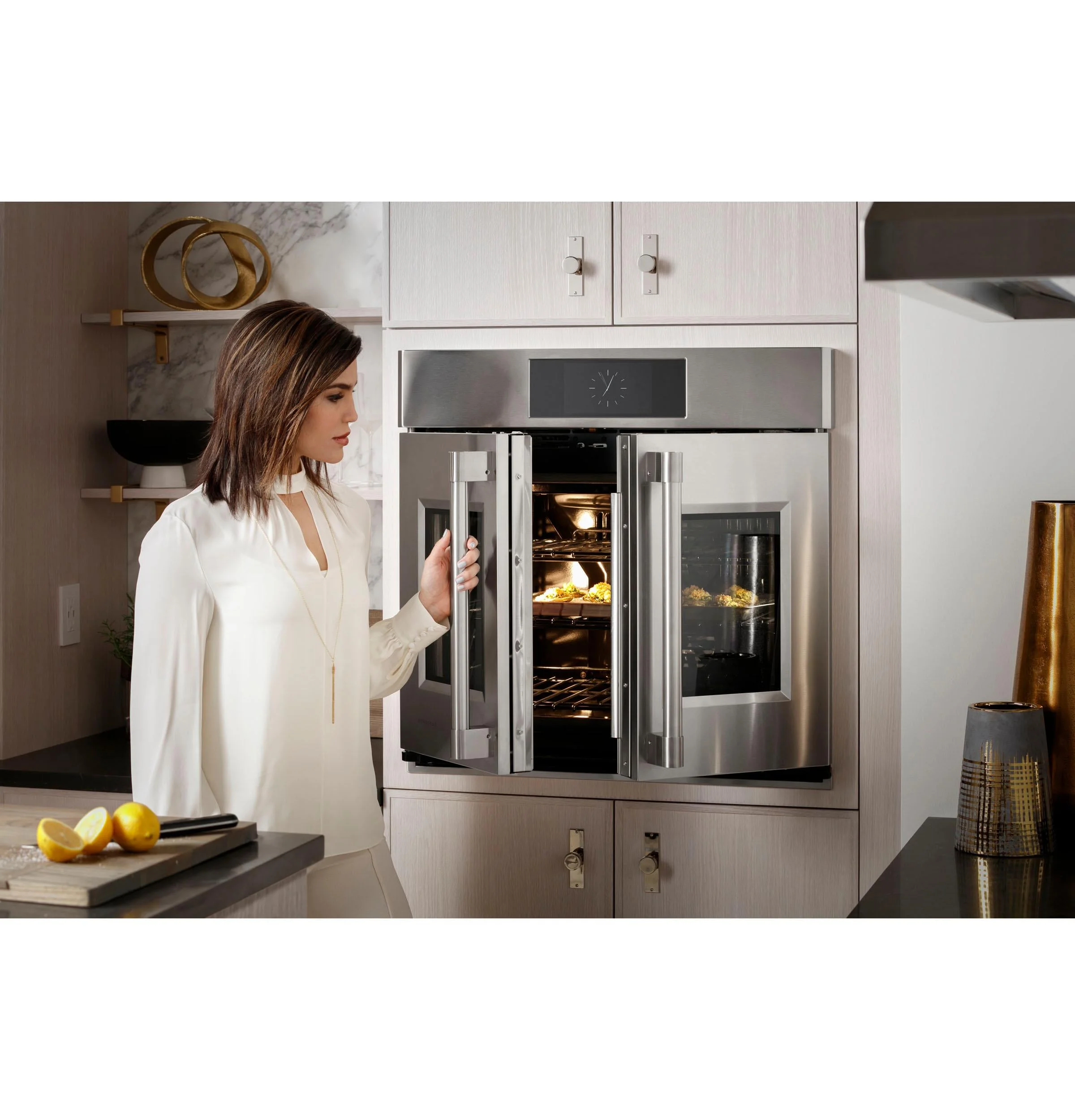

French-door design
Inspired by commercial kitchen designs, the precision engineered chain-drive mechanism allows for one-hand opening of both doors at the same time

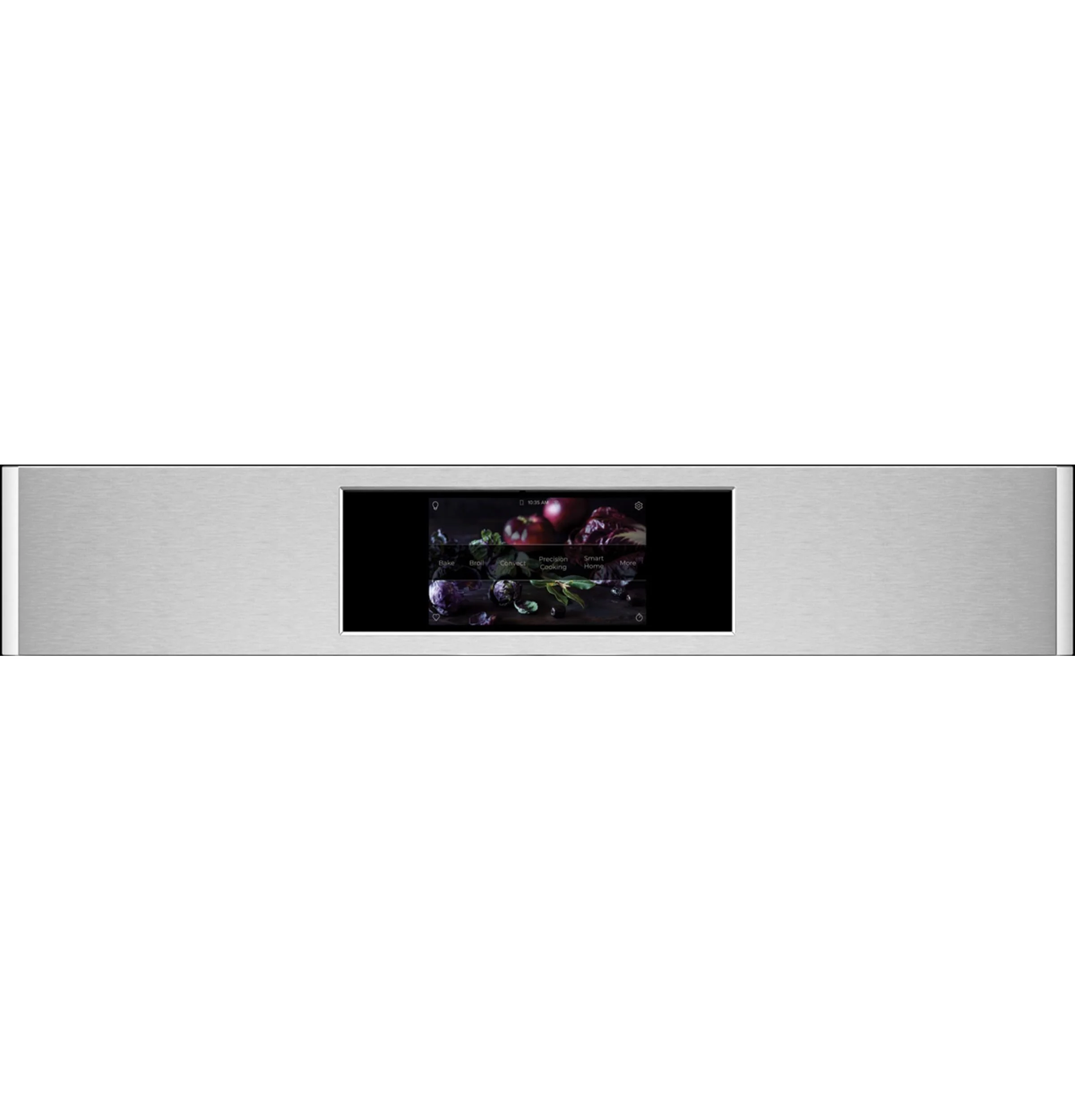

LCD controls
Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates
WiFi powered by SmartHQ™
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Voice Control
Once programmed, you can use your voice to preheat the oven and more, all without raising a finger
Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times
No-Preheat Air Fry
A must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butter
Twin Convection with Direct Air
Achieve beautifully cooked and delicious meals every time with this expertly designed, third heating element and fan combination
Soft-Close Door
An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time
10.0 cubic foot oven capacity (5.0 each oven)
Easily accommodates even the largest meals

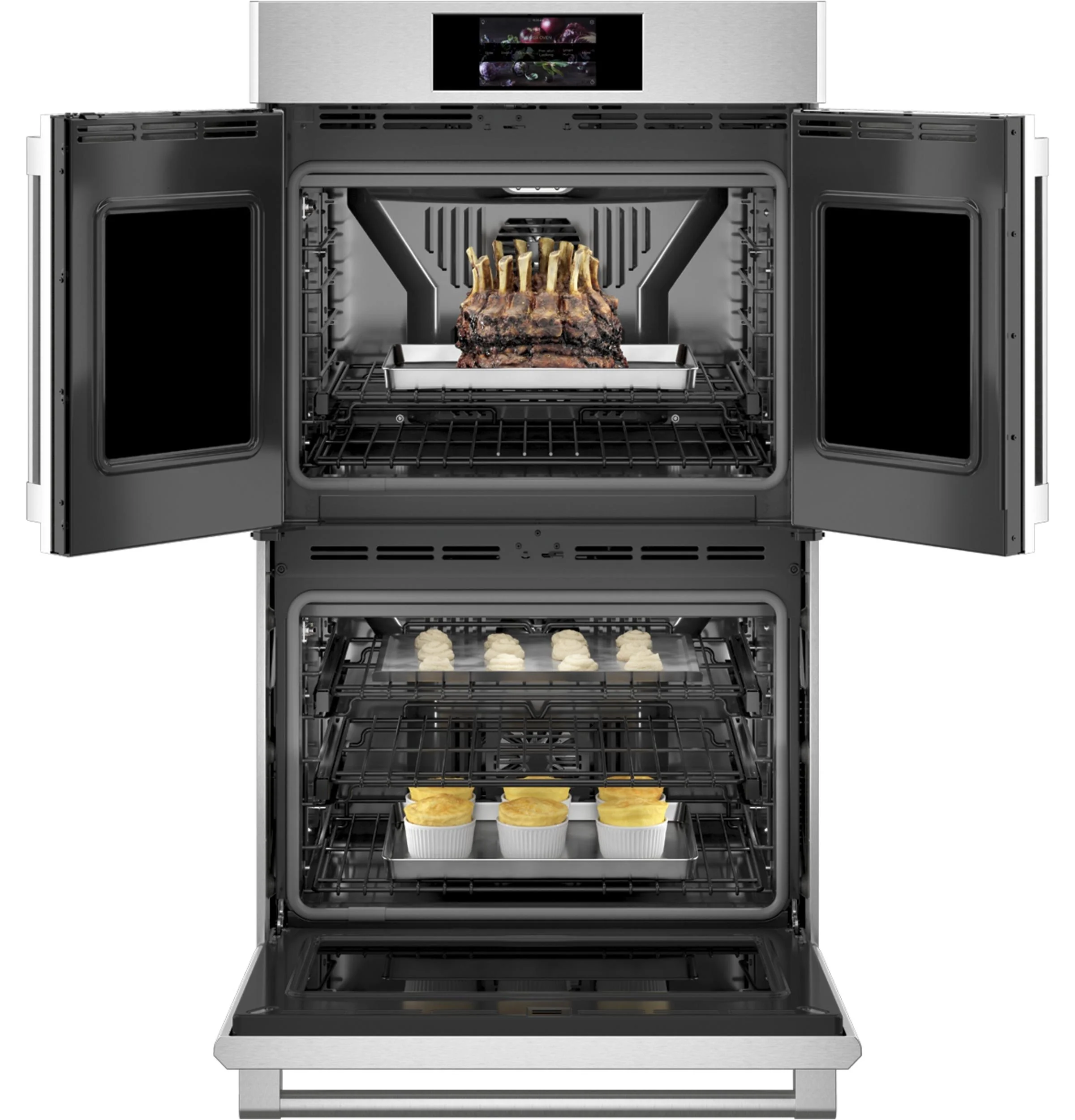

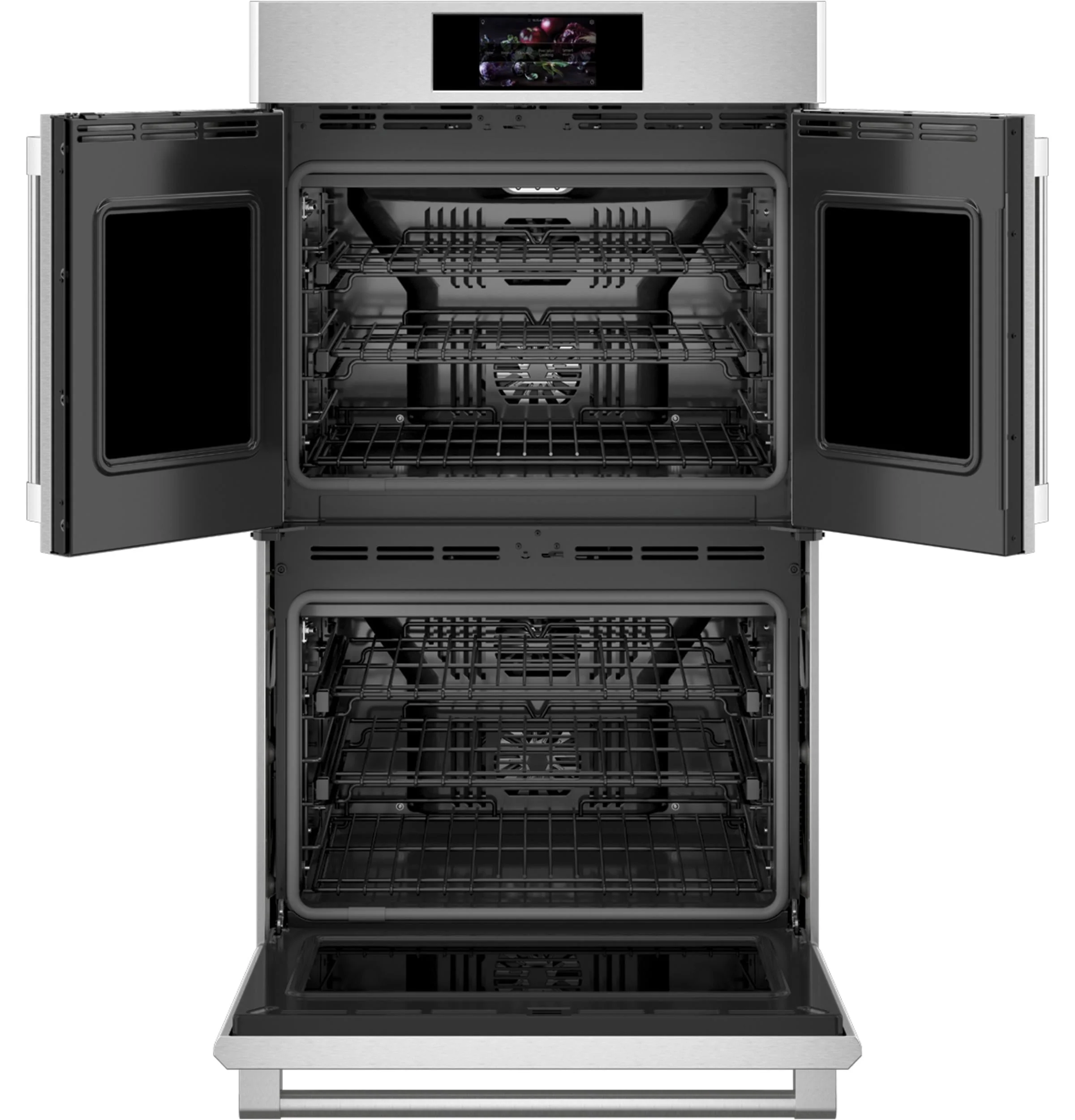

Exclusive self-clean, (4 full-extension, 2 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
Ten-pass bake element
Covers more surface area for more even baking results
Ten-pass dual broil element
Evenly browns dishes of all types and sizes
Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning
Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty
French-door design
Inspired by commercial kitchen designs, the precision engineered chain-drive mechanism allows for one-hand opening of both doors at the same time
LCD controls
Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates
WiFi powered by SmartHQ™
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Voice Control
Once programmed, you can use your voice to preheat the oven and more, all without raising a finger
Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times
No-Preheat Air Fry
A must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butter
Twin Convection with Direct Air
Achieve beautifully cooked and delicious meals every time with this expertly designed, third heating element and fan combination
Soft-Close Door
An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time
10.0 cubic foot oven capacity (5.0 each oven)
Easily accommodates even the largest meals
Exclusive self-clean, (4 full-extension, 2 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
Ten-pass bake element
Covers more surface area for more even baking results
Ten-pass dual broil element
Evenly browns dishes of all types and sizes
Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning
- The Monogram Statement Collection
- French-door design
- LCD controls
- WiFi powered by SmartHQ™
- Voice Control
- Precision cooking modes
- No-Preheat Air Fry
- Twin Convection with Direct Air
- Soft-Close Door
- 10.0 cubic foot oven capacity (5.0 each oven)
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Use and Care Manual
View PDF for more information
Use and Care Manual
View PDF for more information
Use and Care Manual
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Rebates
view available rebates
Monogram 30" Statement French-Door Double Wall Oven
Electric Ranges Collection
Specifications
Specifications
Product
Warm Drawer
No
Warm Drawer
- No
Sabbath Mode
Yes
Sabbath Mode
- Yes
Wi-Fi Enabled
Yes
Wi-Fi Enabled
- Yes
Oven Style
Double Oven
Oven Style
- Double Oven
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Self Clean
Yes
Self Clean
- Yes
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Convection
Yes
Convection
- Yes
Proof Mode
Yes
Proof Mode
- Yes
Hidden Bake Element
Yes
Hidden Bake Element
- Yes
ADA Compliant
No
ADA Compliant
- No
Cleaning Method
Self Cleaning and Steam Cleaning
Cleaning Method
- Self Cleaning and Steam Cleaning
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
51.18" H
Height (bottom to top)
- 51.18" H
Width (side to side)
29.75" W
Width (side to side)
- 29.75" W
Depth (front to back)
27.5" D
Depth (front to back)
- 27.5" D
Oven Cubic Feet Capacity
10
Oven Cubic Feet Capacity
- 10
Storage
Has Storage Drawer
No
Has Storage Drawer
- No
Features & Function
Oven Features
Automatic Convection Conversion, Smart Compatible, Self Cleaning, Sabbath Mode, Wi-Fi Enabled, Interior Lighting
Oven Features
- Automatic Convection Conversion
- Smart Compatible
- Self Cleaning
- Sabbath Mode
- Wi-Fi Enabled
- Interior Lighting
Baking & Cooking Features
Air Fry, Proof Mode, Hidden Bake Element, Convection Bake, Timed Bake, In-Oven Broil, Keep Warm Setting, Delay Start
Baking & Cooking Features
- Air Fry
- Proof Mode
- Hidden Bake Element
- Convection Bake
- Timed Bake
- In-Oven Broil
- Keep Warm Setting
- Delay Start
Refrigerator Features
Sabbath Mode
Refrigerator Features
- Sabbath Mode
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
CAPACITY
Total Capacity (cubic feet)
10 cu ft
Total Capacity (cubic feet)
- 10 cu ft
Capacity (Cu. Ft.)
5.0 Upper / 5.0 Lower
Capacity (Cu. Ft.)
- 5.0 Upper / 5.0 Lower
FILTER
App Filter - WiFi Connect
Built-In
App Filter - WiFi Connect
- Built-In
App Filter - Cabinet Width
Cooking 30 in. (Standard)
App Filter - Cabinet Width
- Cooking 30 in. (Standard)
APPEARANCE
Design Style
Statement Collection
Design Style
- Statement Collection
Frameless Oven Door(s)
Stainless Steel
Frameless Oven Door(s)
- Stainless Steel
Oven Door Features
Drop-Down (Lower)
French-Door (Upper)
Oven Window (Both)
Soft-Close Hinges (Lower)
Oven Door Features
- Drop-Down (Lower) French-Door (Upper) Oven Window (Both) Soft-Close Hinges (Lower)
Handle Color
Stainless Steel
Handle Color
- Stainless Steel
Color Appearance
Stainless Steel
Color Appearance
- Stainless Steel
Installation
Over Warming Drawer
Installation
- Over Warming Drawer
Handle
Statement Collection
Handle
- Statement Collection
POWER / RATINGS
Bake Wattage
2850W
Bake Wattage
- 2850W
Convection Wattage
1300W
Convection Wattage
- 1300W
Electrical Requirements
240V/208V; 60Hz; 40A
Electrical Requirements
- 240V/208V; 60Hz; 40A
KW Rating at 240V
9
KW Rating at 240V
- 9
Amp Rating at 208V
40
Amp Rating at 208V
- 40
Broiler Wattage
4300W; Dual Element
Broiler Wattage
- 4300W; Dual Element
Hertz
60
Hertz
- 60
Amp Rating at 240V
40
Amp Rating at 240V
- 40
KW Rating at 208V
6.8
KW Rating at 208V
- 6.8
WARRANTY
Labor Warranty
Limited 2-year entire appliance
Labor Warranty
- Limited 2-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Parts Warranty
Limited 2-year entire appliance
Parts Warranty
- Limited 2-year entire appliance
WEIGHTS & DIMENSIONS
Overall Depth
27.5 in
Overall Depth
- 27.5 in
Cabinet Width
30 in
Cabinet Width
- 30 in
Net Weight
364 lb
Net Weight
- 364 lb
Oven Interior Dimensions (upper)
25 x 17-3/8 x 20 1/4
Oven Interior Dimensions (upper)
- 25 x 17-3/8 x 20 1/4
Overall Width
29.75 in
Overall Width
- 29.75 in
Cutout Dimensions (w x h x d) (in.)
28-5/8 x 51-15/16 x 23-1/2
Cutout Dimensions (w x h x d) (in.)
- 28-5/8 x 51-15/16 x 23-1/2
Oven Interior Dimensions (lower)
25 x 17-3/8 x 20 1/4
Oven Interior Dimensions (lower)
- 25 x 17-3/8 x 20 1/4
Approximate Shipping Weight
390 lb
Approximate Shipping Weight
- 390 lb
Overall Height
51.1875 in
Overall Height
- 51.1875 in
FEATURES
WiFi Connect
Built-In
WiFi Connect
- Built-In
Oven Cooking Modes
Convection Bake Multi-Rack
Convection Broil Hi/Lo
Convection Roast
Keep Warm
No-Preheat Air Frying
Precision Cooking Modes
Proof
Thermal Bake
Thermal Broil Hi/Lo
Oven Cooking Modes
- Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Keep Warm No-Preheat Air Frying Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo
Fuel Type
Electric
Fuel Type
- Electric
Product Type
Double Oven
Product Type
- Double Oven
Oven Interior
2 LED Light Columns (Both Ovens)
Black Gloss Finish
True Hidden Bake Element (Both Ovens)
Oven Interior
- 2 LED Light Columns (Both Ovens) Black Gloss Finish True Hidden Bake Element (Both Ovens)
Cooking Technology
Convection
Cooking Technology
- Convection
Oven Features
10-Pass Bake Element
10-Pass Dual Broil Element
Closed Door Broiling
Oven Features
- 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling
Cleaning Time
Variable with Delay Clean Option
Cleaning Time
- Variable with Delay Clean Option
Configuration
Double Oven
Configuration
- Double Oven
Oven Rack Positions (Single or Upper/Lower)
6 / 6
Oven Rack Positions (Single or Upper/Lower)
- 6 / 6
Oven Control Features
12-Hour Shut-Off Capability
Audible Preheat Signal
Auto Recipe Conversion
Control Lock Capability
Cook Time
C° or F° Programmable
Delay Time
Electronic Clock & Kitchen Timer
Mis-Wire Detection
Proof Mode
Remote Enabled
Sabbath Mode
Temperature Probe
Warm Mode
Oven Control Features
- 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Control Lock Capability Cook Time C° or F° Programmable Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Proof Mode Remote Enabled Sabbath Mode Temperature Probe Warm Mode
Collection
Statement
Collection
- Statement
Oven Rack Features
1 Self-Clean Heavy-Duty Rack (Both Ovens)
2 Self-Clean Heavy-Duty, Full Extension Oven Racks (Both Ovens)
Ladder-Rack Positions (Both Ovens)
Oven Rack Features
- 1 Self-Clean Heavy-Duty Rack (Both Ovens) 2 Self-Clean Heavy-Duty, Full Extension Oven Racks (Both Ovens) Ladder-Rack Positions (Both Ovens)
Self-Clean Oven Door Lock
Automatic
Self-Clean Oven Door Lock
- Automatic
Cooking System
Twin Fan, True European Convection with Direct Air (Both Ovens)
Variable Speed, Reverse Air Convection (Both Ovens)
Cooking System
- Twin Fan, True European Convection with Direct Air (Both Ovens) Variable Speed, Reverse Air Convection (Both Ovens)
Control Type
7" Full-Color Touch LCD Screen
Control Type
- 7" Full-Color Touch LCD Screen
Connected Capabilities
Amazon Alexa
Fresco
Google Home
IFTTT
Innit
Sonos
The Google Assistant
Connected Capabilities
- Amazon Alexa Fresco Google Home IFTTT Innit Sonos The Google Assistant
Oven Cleaning Type
Self-Clean with Steam Clean Option
Oven Cleaning Type
- Self-Clean with Steam Clean Option
Features
The Monogram Statement Collection, French-door design, LCD controls, WiFi powered by SmartHQ™, Voice Control, Precision cooking modes, No-Preheat Air Fry, Twin Convection with Direct Air, Soft-Close Door, 10.0 cubic foot oven capacity (5.0 each oven)
Misc Features
- The Monogram Statement Collection
- French-door design
- LCD controls
- WiFi powered by SmartHQ™
- Voice Control
- Precision cooking modes
- No-Preheat Air Fry
- Twin Convection with Direct Air
- Soft-Close Door
- 10.0 cubic foot oven capacity (5.0 each oven)
Item & Dimensions
Manufacturer
Monogram
Manufacturer
- Monogram
The Electric Ranges Monogram 30" Statement French-Door Double Wall Oven, made by Monogram,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Electric Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Similar search terms: Oven, Kitchen Appliances, Double Oven, Single Oven, Gas Oven, Electric Oven, Built in Oven, Combination Oven, Range, Oven Range, Oven with Ranges, Oven with Stove Top, Convection Oven, Oven with Microwave, Stove Oven, Kitchen Range, Roaster, Stove
Reference #: ZTDX1FPSNSS
Your cart looks happy!
Monogram Electric Ranges Double Wall Electric Oven
You Might Also Need
