lessDimensions:
29.75" W
×
20.87" D
×
4.625" H
| Width (side to side) | 29.75 |
| Depth (front to back) | 20.87 |
| Height (bottom to top) | 4.625 |
Disclaimer
Description
4 Induction Cooking Elements
This 4-burner induction cooktop provides rapid heat that quickly responds when you change the temperature. Electromagnetic technology heats the pan, not the cooktop surface, allowing the cooktop to stay cool.
Precision Temperature Control
Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature - from 100 to 500 degrees. Perfect for sauces, candies and frying.
Flush-Mount Capable
Optional accessory kit enables the cooktop to be flush inset into the countertop for a sleek, modern look

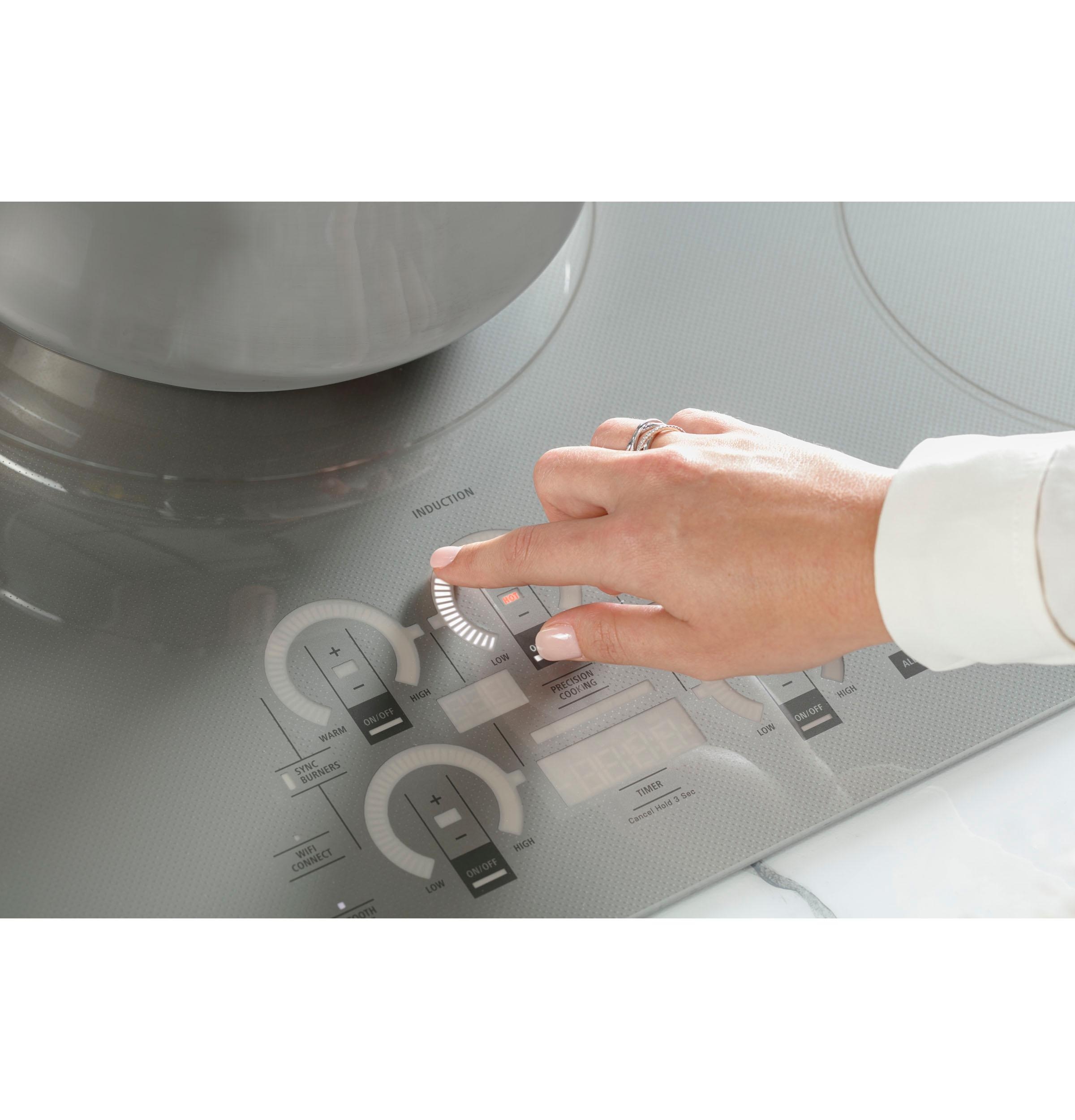

Glide Touch Controls
Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.
Synchronized Elements
Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.
Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting.
Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
This 4-burner induction cooktop provides rapid heat that quickly responds when you change the temperature. Electromagnetic technology heats the pan, not the cooktop surface, allowing the cooktop to stay cool.
Precision Temperature Control
Set your burner to an exact degree, not just high, medium or low, with Precision Temperature Control. Using a smart pan, the cooktop maintains a specific temperature - from 100 to 500 degrees. Perfect for sauces, candies and frying.
Flush-Mount Capable
Optional accessory kit enables the cooktop to be flush inset into the countertop for a sleek, modern look
Glide Touch Controls
Choose from 19 different heat settings with one easy swipe for precise heat control on this easy-to-clean electric cooktop.
Synchronized Elements
Connect and control two cooktop burners as one to create a bigger cooking surface for pans such as griddles.
Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water.
Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting.
Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are hot on this electric cooktop with hot surface indicator lights.
- ADA Compliant
- Precision Temperature Control
- Flush-Mount Capable
- Glide Touch Controls
- Synchronized Elements
- Keep Warm Setting
- Control Lock
- Hot Surface Indicator Lights
- Hot Surface Indicator Lights
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Installation Instructions
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Quick Specs
View PDF for more information
Use and Care Manual
View PDF for more information
Use and Care Manual
View PDF for more information
Use and Care Manual
View PDF for more information
Use and Care Manual
View PDF for more information
Use and Care Manual
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Kitchen Safety Tips
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Warranty
View PDF for more information
Rebates
view available rebates
Monogram Energy Star® 30" Induction Cooktop
Electric Ranges Collection
Specifications
Specifications
Product
Sabbath Mode
No
Sabbath Mode
- No
Wi-Fi Enabled
Yes
Wi-Fi Enabled
- Yes
Cooking Surface Type
Glass on Stainless
Cooking Surface Type
- Glass on Stainless
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Burner Types
Keep Warm, Melting Burner
Burner Types
- Keep Warm
- Melting Burner
Appliance Color
Black
Appliance Color
- Black
Induction
Yes
Induction
- Yes
ADA Compliant
No
ADA Compliant
- No
Cooktop Type
Induction
Cooktop Type
- Induction
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
4.625" H
Height (bottom to top)
- 4.625" H
Width (side to side)
29.75" W
Width (side to side)
- 29.75" W
Depth (front to back)
20.87" D
Depth (front to back)
- 20.87" D
Features & Function
Number of Burners
4
Number of Burners
- 4
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Black
Color Family
- Black
Color Name
Black
Color Name
- Black
APPEARANCE
Color Appearance
Black
Color Appearance
- Black
Installation
Above 120V Advantium
Above Wall Ovens (except SDWO)
Above Warming Drawer
Flush-mount capable
With Telescopic Downdraft
Installation
- Above 120V Advantium Above Wall Ovens (except SDWO) Above Warming Drawer Flush-mount capable With Telescopic Downdraft
Frameless
Yes
Frameless
- Yes
POWER / RATINGS
Recommended Circuit Breaker (Amps) at 240V
40
Recommended Circuit Breaker (Amps) at 240V
- 40
Max. Connected Load (kW) at 240V
7.7
Max. Connected Load (kW) at 240V
- 7.7
Max. Current Draw (Amps) at 240V
32.1
Max. Current Draw (Amps) at 240V
- 32.1
Max. Connected Load (kW) at 208V
6.9
Max. Connected Load (kW) at 208V
- 6.9
Recommended Circuit Breaker (Amps) at 208V
40
Recommended Circuit Breaker (Amps) at 208V
- 40
Max. Current Draw (Amps) at 208V
33.2
Max. Current Draw (Amps) at 208V
- 33.2
WARRANTY
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
ACCESSORIES
Optional Accessories
JXPROBE1 - Precision cooking probe
Optional Accessories
- JXPROBE1 - Precision cooking probe
Cooktop Cleaning
Included
Cooktop Cleaning
- Included
Optional Flush Mount Kit
JXFLUSH1
Optional Flush Mount Kit
- JXFLUSH1
WEIGHTS & DIMENSIONS
Cooktop Size
30 in
Cooktop Size
- 30 in
Overall Height
4.625 in
Overall Height
- 4.625 in
Cutout Depth (in)
19.625
Cutout Depth (in)
- 19.625
Cabinet Width
30 in
Cabinet Width
- 30 in
Approximate Shipping Weight
40 lb
Approximate Shipping Weight
- 40 lb
Overall Width
29.75 in
Overall Width
- 29.75 in
Net Weight
34 lb
Net Weight
- 34 lb
Cutout Width (in)
28.5
Cutout Width (in)
- 28.5
Overall Depth
20.875 in
Overall Depth
- 20.875 in
FEATURES
WiFi Connect
Built-In
WiFi Connect
- Built-In
Filler trim kit
JXTR32B
Filler trim kit
- JXTR32B
Cooktop Burner Type
4 Induction Elements
Cooktop Burner Type
- 4 Induction Elements
Fuel Type
Electric
Fuel Type
- Electric
Style
Smoothtop
Style
- Smoothtop
Element - Left Front
7" 2500W
Element - Left Front
- 7" 2500W
Connected Capabilities
Amazon Alexa
Google Home
Connected Capabilities
- Amazon Alexa Google Home
Short Description
30" Induction Cooktop
Short Description
- 30" Induction Cooktop
Indicator Lights
4 Hot Surface
Surface Element "ON"
Indicator Lights
- 4 Hot Surface Surface Element "ON"
Element - Right Front
11" 3700W
Element - Right Front
- 11" 3700W
Control Location
Front Center
Control Location
- Front Center
Cooking Technology
Induction
Cooking Technology
- Induction
Cooktop Type
4 Induction Elements
Cooktop Type
- 4 Induction Elements
Cooktop Surface
Black Graphite Glass Ceramic
Cooktop Surface
- Black Graphite Glass Ceramic
Cooktop Control Features
Bridge Control
Control Lock Capability
Custom Settings
Electronic Touch Slider
Melt Setting
Pan Presence Sensor
Pan Size Sensor
Sync-Burners
Cooktop Control Features
- Bridge Control Control Lock Capability Custom Settings Electronic Touch Slider Melt Setting Pan Presence Sensor Pan Size Sensor Sync-Burners
WiFi Enabled Features
Chef Connect with Hoods/OTRs
Interfaces with SmartHQ App
Works with HestanCue Pans
Works with Precision Cooking Probe
WiFi Enabled Features
- Chef Connect with Hoods/OTRs Interfaces with SmartHQ App Works with HestanCue Pans Works with Precision Cooking Probe
Timer
Kitchen timer
Timer
- Kitchen timer
Element - Left Rear
7" 2500W
Element - Left Rear
- 7" 2500W
Control Type
Electronic Touch Slider
Control Type
- Electronic Touch Slider
Element - Right Rear
6" 1800W
Element - Right Rear
- 6" 1800W
Collection
EcoBalance
Minimalist
Statement
Collection
- EcoBalance Minimalist Statement
Product Type
Cooktop
Product Type
- Cooktop
Power Level Indicator
19 Levels
Power Level Indicator
- 19 Levels
Features
ADA Compliant, Precision Temperature Control, Flush-Mount Capable, Glide Touch Controls, Synchronized Elements, Keep Warm Setting, Control Lock, Hot Surface Indicator Lights, Hot Surface Indicator Lights
Misc Features
- ADA Compliant
- Precision Temperature Control
- Flush-Mount Capable
- Glide Touch Controls
- Synchronized Elements
- Keep Warm Setting
- Control Lock
- Hot Surface Indicator Lights
- Hot Surface Indicator Lights
Item & Dimensions
Manufacturer
Monogram
Manufacturer
- Monogram
The Electric Ranges Monogram Energy Star® 30" Induction Cooktop, made by Monogram,
