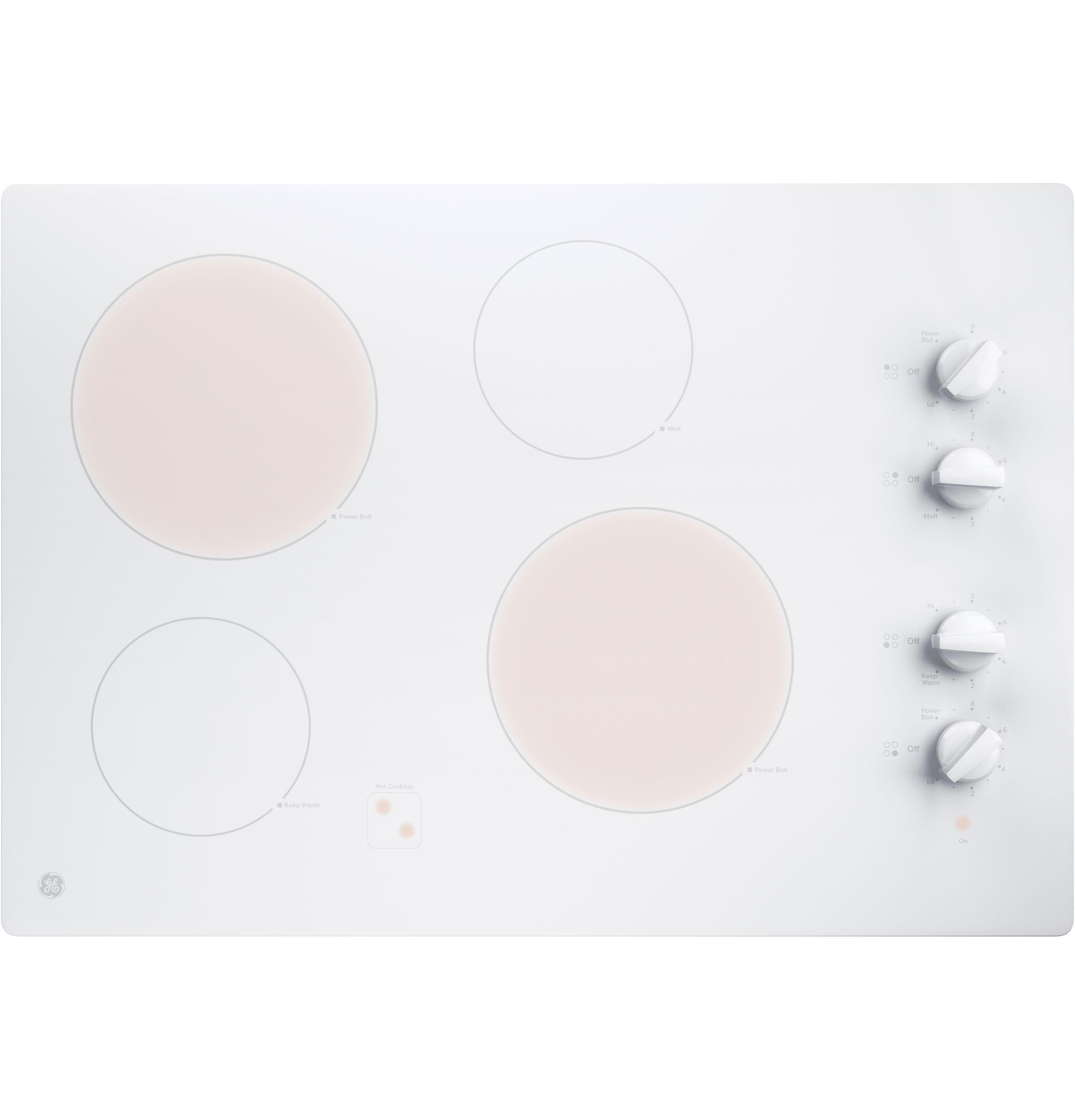

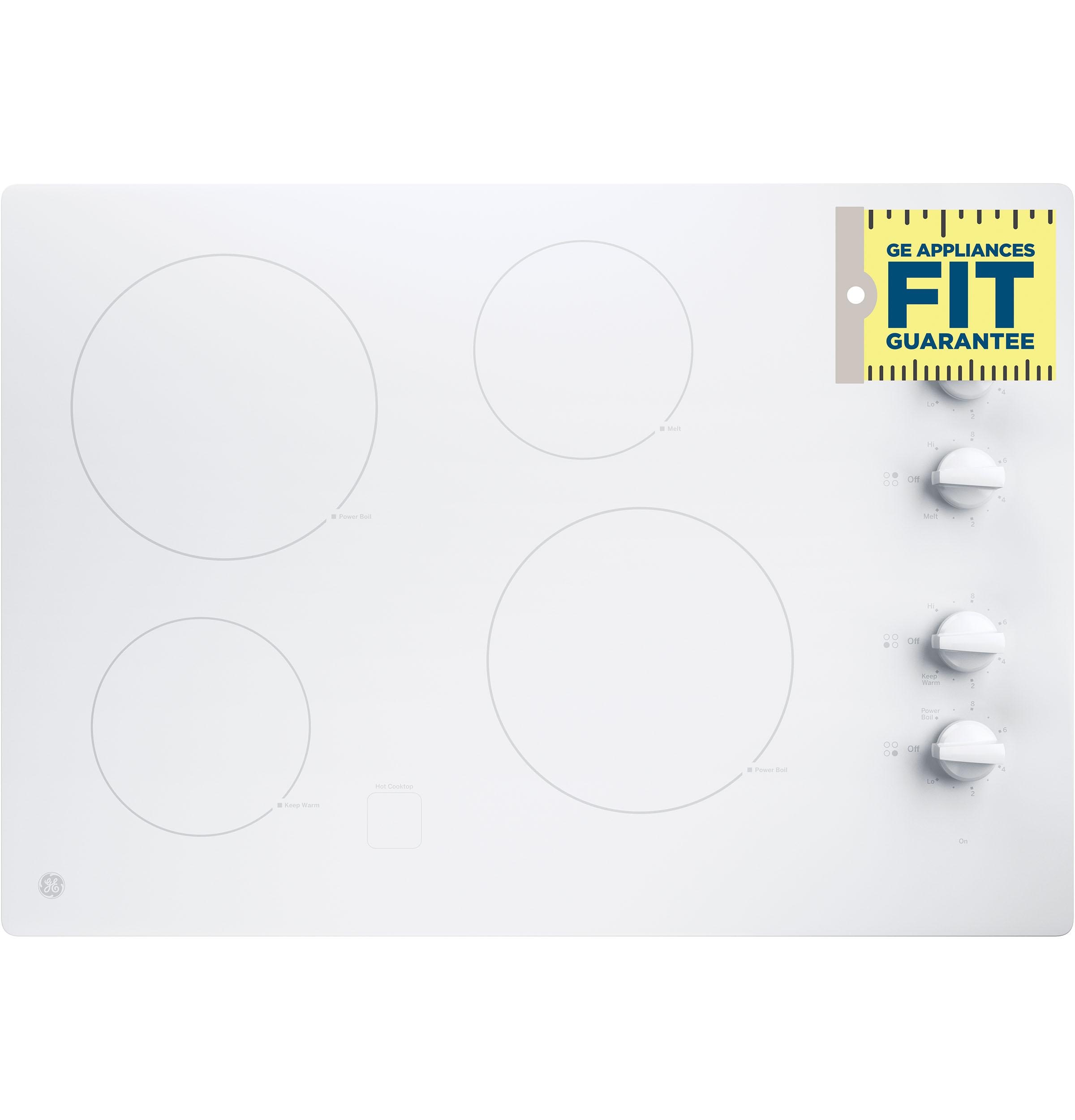

Ge® 30" Built-In Knob Control Electric Cooktop
SKU: JP3030TWWW
$1,221
Add To Cart To See Lowest Price
Save
$642.01
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
29.75" W
×
20.88" D
×
4.0" H
Width (side to side) | 29.75 |
Depth (front to back) | 20.88 |
Height (bottom to top) | 4.0 |
Disclaimer
Description
Four radiant cooking elements
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Cook foods quickly and evenly on this sleek, glass surface
Power Boil Elements
Get rapid heat from these 2 powerful 8" 2,500-watt elements
Keep Warm Setting
A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting
Melt Setting
Gently melt delicate foods without scorching thanks to a convenient melt setting
Hot surface indicator lights
Know when elements are too hot to touch with a quick glance
Cooktop "On" indicator light
A light lets you know when an element is active
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- Melt Setting
- Power Boil Elements
- Keep Warm Setting
- Hot surface indicator lights
- Four radiant cooking elements
- Cooktop "On" indicator light
- Fit Guarantee
Rebates
view available rebates
Specifications
Specifications
Product
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Burner Types
Keep Warm, Power Burner, Melting Burner, Rapid Boil Burner
Burner Types
- Keep Warm
- Power Burner
- Melting Burner
- Rapid Boil Burner
Appliance Color
White
Appliance Color
- White
Induction
No
Induction
- No
ADA Compliant
No
ADA Compliant
- No
Cooktop Type
Radiant
Cooktop Type
- Radiant
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
4.0" H
Height (bottom to top)
- 4.0" H
Width (side to side)
29.75" W
Width (side to side)
- 29.75" W
Depth (front to back)
20.88" D
Depth (front to back)
- 20.88" D
Features & Function
Number of Burners
4
Number of Burners
- 4
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
White / Cream
Color Family
- White / Cream
Color Name
White
Color Name
- White
APPEARANCE
Color Appearance
White
Color Appearance
- White
Frameless
Yes
Frameless
- Yes
Control Knobs
Gloss White
Control Knobs
- Gloss White
POWER / RATINGS
Recommended Circuit Breaker (Amps) at 240V
40
Recommended Circuit Breaker (Amps) at 240V
- 40
Max. Connected Load (kW) at 240V
7.4
Max. Connected Load (kW) at 240V
- 7.4
Max. Current Draw (Amps) at 240V
30.8
Max. Current Draw (Amps) at 240V
- 30.8
Max. Connected Load (kW) at 208V
5.6
Max. Connected Load (kW) at 208V
- 5.6
Electrical Requirements
208/240V ; 60Hz ; 40A
Electrical Requirements
- 208/240V ; 60Hz ; 40A
Recommended Circuit Breaker (Amps) at 208V
30
Recommended Circuit Breaker (Amps) at 208V
- 30
Max. Current Draw (Amps) at 208V
26.7
Max. Current Draw (Amps) at 208V
- 26.7
WARRANTY
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Cooktop Size
30 in
Cooktop Size
- 30 in
Overall Height
4 in
Overall Height
- 4 in

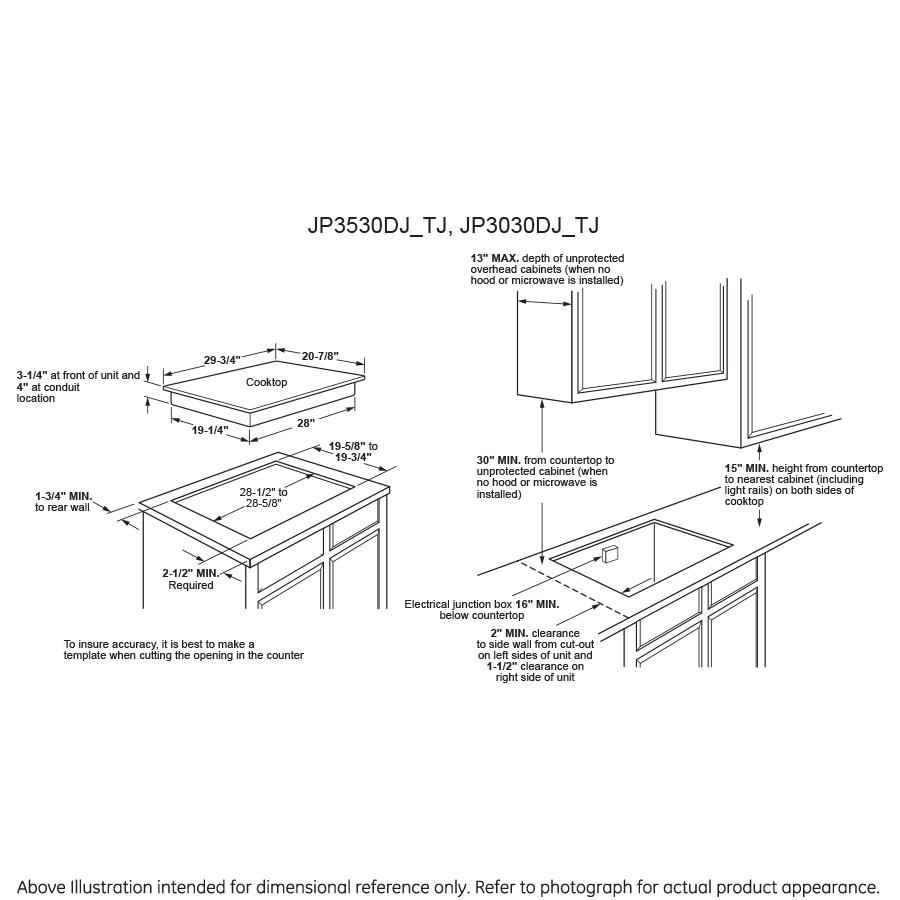

Cutout Depth (in)
19 5/8 in
Cutout Depth (in)
- 19 5/8 in
Cabinet Width
30 in
Cabinet Width
- 30 in
Approximate Shipping Weight
43 lb
Approximate Shipping Weight
- 43 lb
Overall Width
29.75 in
Overall Width
- 29.75 in
Net Weight
37 lb
Net Weight
- 37 lb
Cutout Width (in)
28-1/2
Cutout Width (in)
- 28-1/2
Overall Depth
20.875 in
Overall Depth
- 20.875 in
FEATURES
Dishwasher Safe Knobs
Yes
Dishwasher Safe Knobs
- Yes
Filler trim kit
JXTR32W
Filler trim kit
- JXTR32W
Cooktop Burner Type
4 Ribbon
Smoothtop
Cooktop Burner Type
- 4 Ribbon Smoothtop
Melt Setting
Yes
Melt Setting
- Yes
Fuel Type
Electric
Fuel Type
- Electric
Power Boil Burner
Yes
Power Boil Burner
- Yes
Element - Left Front
6" 1200W
Element - Left Front
- 6" 1200W
Indicator Lights
4 Hot Surface
Red
Surface Element "ON"
Indicator Lights
- 4 Hot Surface Red Surface Element "ON"
Element - Right Front
8" 2500W Power Boil
Element - Right Front
- 8" 2500W Power Boil
Control Location
Right Side
Control Location
- Right Side
Cooktop Type
Radiant Smoothtop
Cooktop Type
- Radiant Smoothtop
Cooktop Surface
True White Ceramic Glass
Cooktop Surface
- True White Ceramic Glass
Cooktop Control Features
Keep-Warm Setting
Melt Setting
Cooktop Control Features
- Keep-Warm Setting Melt Setting
Element - Left Rear
8" 2500W Power Boil
Element - Left Rear
- 8" 2500W Power Boil
Control Type
Knob (Infinite switch)
Control Type
- Knob (Infinite switch)
Element - Right Rear
6" 1200W
Element - Right Rear
- 6" 1200W
Product Type
Cooktop
Product Type
- Cooktop
Features
Melt Setting, Power Boil Elements, Keep Warm Setting, Hot surface indicator lights, Four radiant cooking elements, Cooktop "On" indicator light, Fit Guarantee
- Melt Setting
- Power Boil Elements
- Keep Warm Setting
- Hot surface indicator lights
- Four radiant cooking elements
- Cooktop "On" indicator light
- Fit Guarantee
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Electric Ranges Ge® 30" Built-In Knob Control Electric Cooktop, made by GE Appliances,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Electric Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
Similar search terms: Cooktops, Electric Cooktop, Gas Cooktop, Down Draft Cooktop, Cook Top, Cooktop Range, Ranges, Cooktop with Downdraft, Kitchen Cooktop, Kitchen Appliances, Appliances, Stove, Kitchen Stove, Cook Top Stove, Cooker, Cookstove, Cook Stove, Stove Top, Rangetops, Range Top
Reference #: JP3030TWWW
