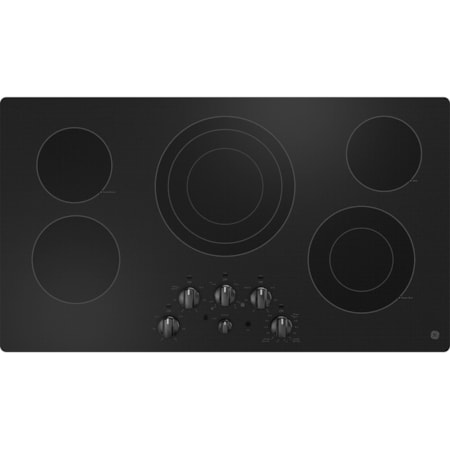

Ge® 36" Built-In Knob Control Electric Cooktop
SKU: JEP5036DTBB
Color:
Black
$1,554
Add To Cart To See Lowest Price
Save
$229.01
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
36.13" W
×
21.0" D
×
3.38" H
| Width (side to side) | 36.13 |
| Depth (front to back) | 21.0 |
| Height (bottom to top) | 3.38 |
Disclaimer
Description
Easy Clean Surface
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop

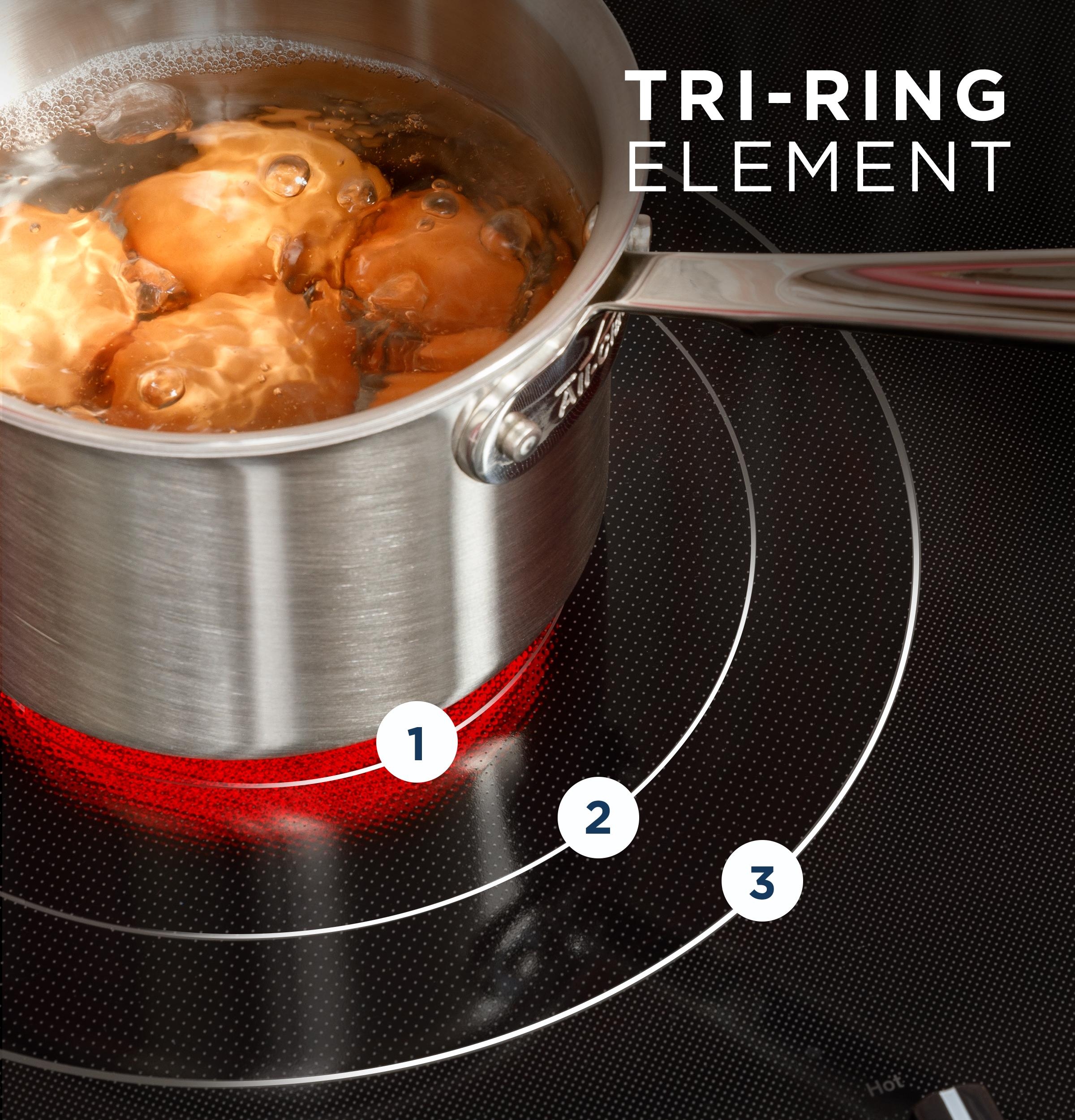

Power Boil on Tri-Ring Element
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element
Power Boil Dual-Ring Element (2,400W)
Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes
Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water
Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

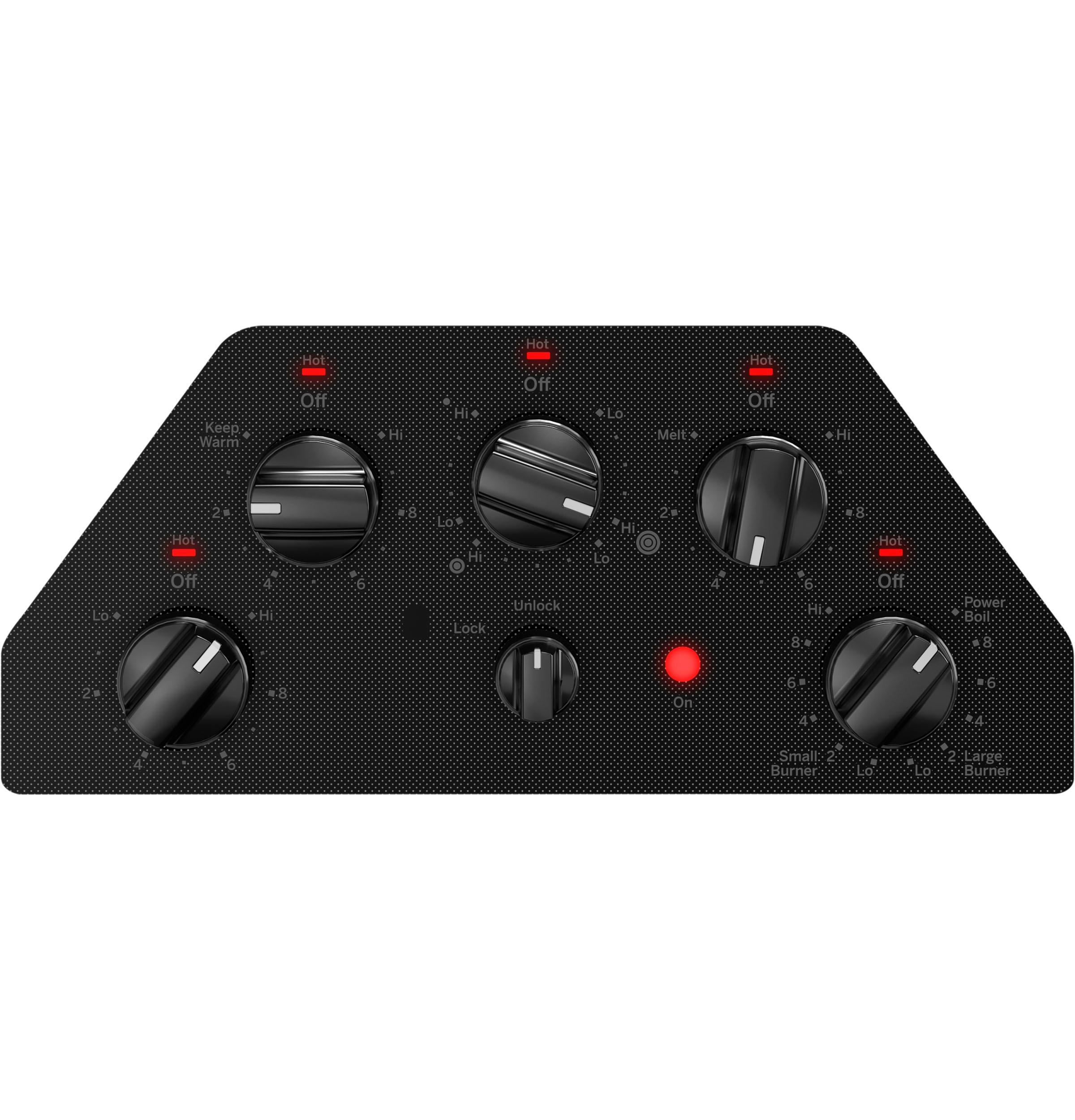

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
Fit Guarantee
This cooktop will fit your existing 36" cut-out or GE Appliances will help pay for modifications up to $100
Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop
Power Boil on Tri-Ring Element
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,000-watt flexible element
Power Boil Dual-Ring Element (2,400W)
Cook more dishes quickly with an additional 2,400-watt flexible cooking element that rapidly boils water in different pan sizes
Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water
Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting
Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights
Fit Guarantee
This cooktop will fit your existing 36" cut-out or GE Appliances will help pay for modifications up to $100
Flexible Cooktop
5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots
Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop
- Keep Warm Setting
- Flexible Cooktop
- Power Boil on Tri-Ring Element
- Melt Setting
- Power Boil Dual-Ring Element (2,400W)
- Control Lock
- ADA Compliant
- Hot Surface Indicator Lights
- Fit Guarantee
Rebates
view available rebates
Ge® 36" Built-In Knob Control Electric Cooktop
Electric Ranges Collection
$1,554
Add To Cart To See Lowest Price
Save
$229.01
Specifications
Specifications
Product
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Cooking Surface Type
Glass on Stainless
Cooking Surface Type
- Glass on Stainless
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Burner Types
Keep Warm, Power Burner, Melting Burner, Rapid Boil Burner
Burner Types
- Keep Warm
- Power Burner
- Melting Burner
- Rapid Boil Burner
Appliance Color
Black
Appliance Color
- Black
Induction
No
Induction
- No
ADA Compliant
Yes
ADA Compliant
- Yes
Cooktop Type
Radiant
Cooktop Type
- Radiant
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
3.38" H
Height (bottom to top)
- 3.38" H
Width (side to side)
36.13" W
Width (side to side)
- 36.13" W
Depth (front to back)
21.0" D
Depth (front to back)
- 21.0" D
Features & Function
Number of Burners
5
Number of Burners
- 5
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Black
Color Family
- Black
Color Name
Black
Color Name
- Black
FILTER
App Filter - Cabinet Width
Cooking 36 in.
App Filter - Cabinet Width
- Cooking 36 in.
App Filter - Cooktop Type
Radiant Smoothtop
App Filter - Cooktop Type
- Radiant Smoothtop
App Filter - Fuel Type
Electric
App Filter - Fuel Type
- Electric
App Filter - Control Type
Digital touch
App Filter - Control Type
- Digital touch
APPEARANCE
Color Appearance
Black
Color Appearance
- Black
Frameless
Yes
Frameless
- Yes
Control Knobs
Gloss Black
Control Knobs
- Gloss Black
POWER / RATINGS
Recommended Circuit Breaker (Amps) at 240V
40
Recommended Circuit Breaker (Amps) at 240V
- 40
Max. Connected Load (kW) at 240V
9.4
Max. Connected Load (kW) at 240V
- 9.4
Max. Current Draw (Amps) at 240V
39.2
Max. Current Draw (Amps) at 240V
- 39.2
Max. Connected Load (kW) at 208V
7.1
Max. Connected Load (kW) at 208V
- 7.1
Recommended Circuit Breaker (Amps) at 208V
40
Recommended Circuit Breaker (Amps) at 208V
- 40
Max. Current Draw (Amps) at 208V
34.1
Max. Current Draw (Amps) at 208V
- 34.1
WARRANTY
Parts Warranty
Limited 1-year entire appliance
Parts Warranty
- Limited 1-year entire appliance
Warranty Notes
See written warranty for full details
Warranty Notes
- See written warranty for full details
Labor Warranty
Limited 1-year entire appliance
Labor Warranty
- Limited 1-year entire appliance
WEIGHTS & DIMENSIONS
Cooktop Size
36 in
Cooktop Size
- 36 in
Overall Height
3.375 in
Overall Height
- 3.375 in
Cutout Depth (in)
19-1/8
Cutout Depth (in)
- 19-1/8
Cabinet Width
36 in
Cabinet Width
- 36 in
Approximate Shipping Weight
49 lb
Approximate Shipping Weight
- 49 lb
Overall Width
36.125 in
Overall Width
- 36.125 in
Net Weight
43.4 lb
Net Weight
- 43.4 lb
Cutout Width (in)
33-7/8
Cutout Width (in)
- 33-7/8
Overall Depth
21 in
Overall Depth
- 21 in
FEATURES
Filler trim kit
JXTR32B (not included)
Filler trim kit
- JXTR32B (not included)
Cooktop Burner Type
5 Ribbon
Smoothtop
Cooktop Burner Type
- 5 Ribbon Smoothtop
Melt Setting
Yes
Melt Setting
- Yes
Fuel Type
Electric
Fuel Type
- Electric
Element - Left Front
7" 1500W (Keep Warm)
Element - Left Front
- 7" 1500W (Keep Warm)
Indicator Lights
5 Hot Surface
Red
Surface Element "ON"
Indicator Lights
- 5 Hot Surface Red Surface Element "ON"
Element - Right Front
8"/5" 2400W Power Boil
Element - Right Front
- 8"/5" 2400W Power Boil
Control Location
Front Center
Control Location
- Front Center
Cooktop Type
Radiant Smoothtop
Cooktop Type
- Radiant Smoothtop
Cooktop Surface
Black Ceramic Glass
Cooktop Surface
- Black Ceramic Glass
Cooktop Control Features
Keep-Warm Setting
Melt Setting
Cooktop Control Features
- Keep-Warm Setting Melt Setting
Timer
Yes
Timer
- Yes
Element - Left Rear
6" 1200W
Element - Left Rear
- 6" 1200W

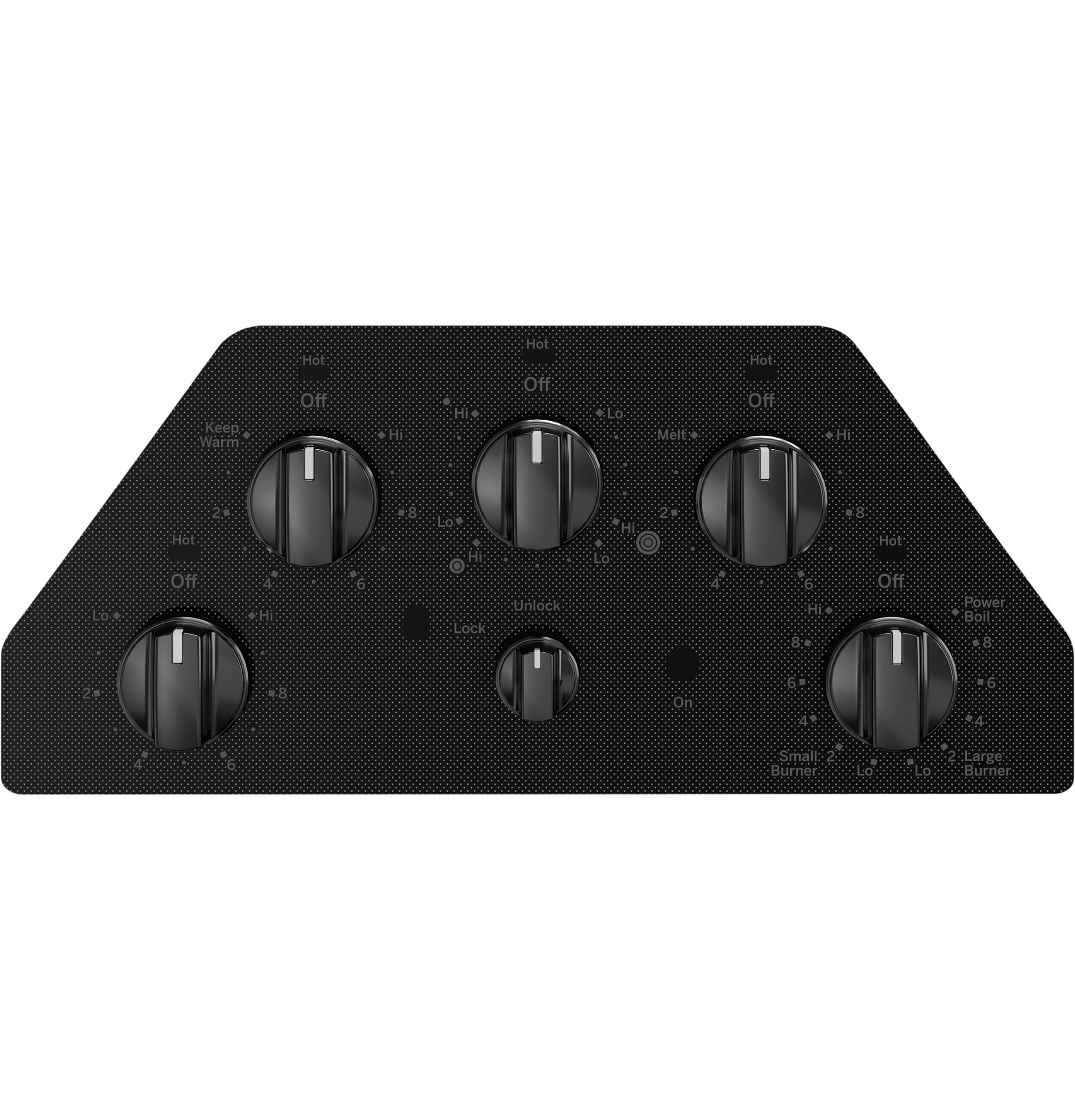

Control Type
Knob (Infinite switch)
Control Type
- Knob (Infinite switch)
Element - Center
12"/9"/6" 3000W Tri-ring Power Boil
Element - Center
- 12"/9"/6" 3000W Tri-ring Power Boil
Element - Right Rear
6" 1200W (Melt)
Element - Right Rear
- 6" 1200W (Melt)
Product Type
Cooktop
Product Type
- Cooktop
Features
Keep Warm Setting, Flexible Cooktop, Power Boil on Tri-Ring Element, Melt Setting, Power Boil Dual-Ring Element (2,400W), Control Lock, ADA Compliant, Hot Surface Indicator Lights, Fit Guarantee
- Keep Warm Setting
- Flexible Cooktop
- Power Boil on Tri-Ring Element
- Melt Setting
- Power Boil Dual-Ring Element (2,400W)
- Control Lock
- ADA Compliant
- Hot Surface Indicator Lights
- Fit Guarantee
Item & Dimensions
Manufacturer
GE Appliances
Manufacturer
- GE Appliances
The Electric Ranges Ge® 36" Built-In Knob Control Electric Cooktop, made by GE Appliances,
is brought to you by Sherman's. Sherman's is a local furniture store, serving the Peoria, Normal, and Peru, IL area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Electric Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Peoria, Normal, and Peru, IL area.
These images are representative of this group as a whole and may differ from this item.
Similar search terms: Cooktops, Electric Cooktop, Gas Cooktop, Down Draft Cooktop, Cook Top, Cooktop Range, Ranges, Cooktop with Downdraft, Kitchen Cooktop, Kitchen Appliances, Appliances, Stove, Kitchen Stove, Cook Top Stove, Cooker, Cookstove, Cook Stove, Stove Top, Rangetops, Range Top
Reference #: JEP5036DTBB
